ModelCore Class Reference

#include <ModelCore.h>

Inheritance diagram for ModelCore:

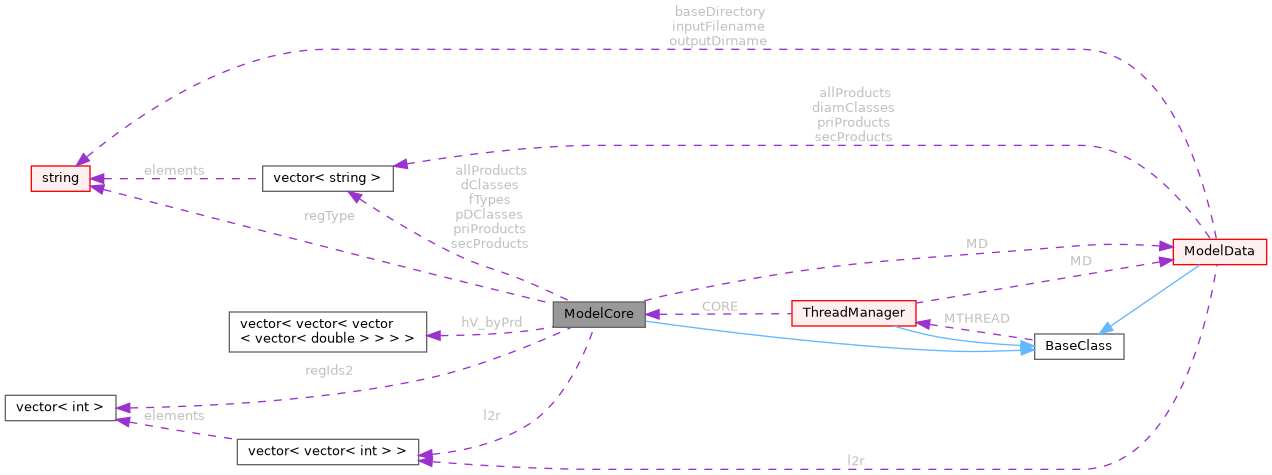

Collaboration diagram for ModelCore:

Public Member Functions
	ModelCore (ThreadManager *MTHREAD_h)
	~ModelCore ()
void	runInitPeriod ()
void	runSimulationYear ()
void	initMarketModule ()
	computes st and pw for second year and several needed-only-at-t0-vars for the market module
void	runMarketModule ()
	computes st (supply total) and pw (weighted price). Optimisation inside.
void	runBiologicalModule ()
	computes hV, hArea and new vol at end of year
void	runManagementModule ()
	computes regArea and expectedReturns
void	cacheSettings ()
	just cache exogenous settings from ModelData
void	cachePixelExogenousData ()
	computes pixel level tp, meta and mort
void	computeInventary ()
	in=f(vol_t-1)
void	computeCumulativeData ()
	computes cumTp, vHa, cumTp_exp, vHa_exp,
void	updateMapAreas ()
	computes forArea_{ft}
Public Member Functions inherited from BaseClass
	BaseClass ()
	~BaseClass ()
void	msgOut (const int &msgCode_h, const string &msg_h, const bool &refreshGUI_h=true) const
	Overloaded function to print the output log.
void	msgOut (const int &msgCode_h, const int &msg_h, const bool &refreshGUI_h=true) const
	Overloaded function to print the output log.
void	msgOut (const int &msgCode_h, const double &msg_h, const bool &refreshGUI_h=true) const
	Overloaded function to print the output log.
int	s2i (const string &string_h) const
	string to integer conversion
double	s2d (const string &string_h) const
	string to double conversion
double	s2d (const string &string_h, const bool &replaceComma) const
	string to double conversion
bool	s2b (const string &string_h) const
	string to bool conversion
string	i2s (const int &int_h) const
	integer to string conversion
string	d2s (const double &double_h) const
	double to string conversion
string	b2s (const bool &bool_h) const
	bool to string conversion
vector< int >	s2i (const vector< string > &string_h) const
	string to integer conversion (vector)
vector< double >	s2d (const vector< string > &string_h, const bool &replaceComma=false) const
	string to double conversion (vector)
vector< bool >	s2b (const vector< string > &string_h) const
	string to bool conversion (vector)
vector< string >	i2s (const vector< int > &int_h) const
	integer to string conversion (vector)
vector< string >	d2s (const vector< double > &double_h) const
	double to string conversion (vector)
vector< string >	b2s (const vector< bool > &bool_h) const
	bool to string conversion (vector)
int	getType (const string &type_h) const
	Return a type according to enum TYPE_* from a string (eg: "string" -> TYPE_STRING (2))
void	refreshGUI () const
	Ping to periodically return the control to the GUI.
template<typename T >
string	toString (const T &x) const
template<typename T >
T	stringTo (const std::string &s) const
int	vSum (const vector< int > &vector_h) const
double	vSum (const vector< double > &vector_h) const
int	vSum (const vector< vector< int > > &vector_h) const
double	vSum (const vector< vector< double > > &vector_h) const
void	tokenize (const string &str, vector< string > &tokens, const string &delimiter=" ") const
	Tokenize a string using a delimiter (default is space)
void	untokenize (string &str, vector< string > &tokens, const string &delimiter=" ") const
template<typename K , typename V >
V	findMap (const map< K, V > &mymap, const K &key, const int &error_level=MSG_CRITICAL_ERROR, const V &notFoundValue=numeric_limits< V >::min()) const
	Lookup a map for a value. Return the value starting from the key.
template<typename K , typename V >
void	changeMapValue (map< K, V > &mymap, const K &key, const V &value, const int &error_level=MSG_CRITICAL_ERROR)
	Change the value stored in a map given the key and the new value.
template<typename K , typename V >
void	incrMapValue (map< K, V > &mymap, const K &key, const V &value, const int &error_level=MSG_CRITICAL_ERROR)
	Increments a value stored in a map of the specified value, given the key.
template<typename K , typename V >
void	incrOrAddMapValue (map< K, V > &mymap, const K &key, const V &value)
	Increments a value stored in a map of the specified value, given the key.
template<typename K , typename V >
void	resetMapValues (map< K, V > &mymap, const V &value)
	Reset all values stored in a map to the specified one.
template<typename K , typename V >
map< K, V >	vectorToMap (const vector< K > &keys, const V &value=0.0)
	Returns a map built using the given vector and the given (scalar) value as keys/values pairs.
template<typename T >
vector< T >	positionsToContent (const vector< T > &vector_h, const vector< int > &positions)
	Return a vector of content from a vector and a vector of positions (int)
template<typename V >
void	debugMap (const map< iisskey, V > &mymap)
	Debug a map.
template<typename K , typename V >
void	debugMap (const map< K, V > &mymap, const K &key)
template<typename K >
int	getMaxPos (const vector< K > &v)
	Returns the position of the maximum element in the vector (the last one in case of multiple equivalent maxima)
template<typename K >
int	getMinPos (const vector< K > &v)
	Returns the position of the minimum element in the vector (the first one in case of multiple equivalent minima)
template<typename K >
K	getMax (const vector< K > &v)
	Returns the value of the maximum element in the vector (the last one in case of multiple equivalent maxima)
template<typename K >
K	getMin (const vector< K > &v)
	Returns the value of the minimum element in the vector (the first one in case of multiple equivalent minima)
template<typename K >
double	getAvg (const vector< K > &v)
	Returns the average of the elements in the vector.
template<typename K >
double	getSd (const vector< K > &v, bool sample=true)
template<typename K >
int	getPos (const K &element, const vector< K > &v, const int &msgCode_h=MSG_CRITICAL_ERROR)
template<typename K >
bool	inVector (const K &element, const vector< K > &v)
double	normSample (const double &avg, const double &stdev, const double &minval=NULL, const double &maxval=NULL) const
	Sample from a normal distribution with bounds. Slower (double time, but still you see the diff only after milion of loops).
template<typename K >
K	normSample (normal_distribution< K > &d, std::mt19937 &gen, const K &minval=NULL, const K &maxval=NULL) const
	Sample from a normal distribution with bounds. Faster (half time) as the normal_distribution is made only once.
template<typename T >
std::string	toString (const T &x) const

Private Member Functions
double	gpd (const string &type_h, const int &regId_h, const string &prodId_h, const int &year=DATA_NOW, const string &freeDim_h="") const
double	gfd (const string &type_h, const int &regId_h, const string &forType_h, const string &freeDim_h, const int &year=DATA_NOW) const
void	spd (const double &value_h, const string &type_h, const int &regId_h, const string &prodId_h, const int &year=DATA_NOW, const bool &allowCreate=false, const string &freeDim_h="") const
void	sfd (const double &value_h, const string &type_h, const int &regId_h, const string &forType_h, const string &freeDim_h, const int &year=DATA_NOW, const bool &allowCreate=false) const
bool	app (const string &prod_h, const string &forType_h, const string &dClass_h) const

Private Attributes
ModelData *	MD
int	firstYear
int	secondYear
int	thirdYear
int	WL2
vector< int >	regIds2
vector< string >	priProducts
vector< string >	secProducts
vector< string >	allProducts
vector< string >	dClasses
vector< string >	pDClasses
vector< string >	fTypes
vector< vector< int > >	l2r
string	regType
double	expType
double	mr
vector< vector< vector< vector< double > > > >	hV_byPrd
bool	rescaleFrequencies

Additional Inherited Members
Protected Attributes inherited from BaseClass
ThreadManager *	MTHREAD
	Pointer to the Thread manager.

Detailed Description

Definition at line 43 of file ModelCore.h.

Constructor & Destructor Documentation

ModelCore()

ModelCore

(

ThreadManager *

MTHREAD_h

)

Definition at line 37 of file ModelCore.cpp.

                                            {
  MTHREAD = MTHREAD_h;
}

~ModelCore()

~ModelCore

(

)

Definition at line 41 of file ModelCore.cpp.

                     {

}

Member Function Documentation

app()

bool app ( const string &  prod_h, const string &  forType_h, const string &  dClass_h  ) const

inlineprivate

Definition at line 70 of file ModelCore.h.

{return MTHREAD->MD->assessProdPossibility(prod_h, forType_h, dClass_h);};

Referenced by computeInventary(), runBiologicalModule(), and runManagementModule().

Here is the call graph for this function:

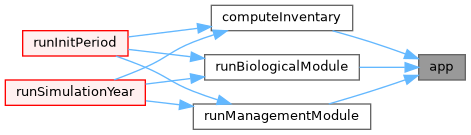

Here is the caller graph for this function:

cachePixelExogenousData()

void cachePixelExogenousData

(

)

computes pixel level tp, meta and mort

cacheSettings()

void cacheSettings

(

)

just cache exogenous settings from ModelData

Definition at line 693 of file ModelCore.cpp.

                        {
  msgOut(MSG_INFO, "Cashing initial model settings..");
  int currentYear = MTHREAD->SCD->getYear();

  MD = MTHREAD->MD;
  firstYear = MD->getIntSetting("initialYear");
  secondYear = firstYear+1;
  thirdYear  = firstYear+2;
  WL2 = MD->getIntSetting("worldCodeLev2");
  regIds2 = MD->getRegionIds(2);
  priProducts = MD->getStringVectorSetting("priProducts");
  secProducts = MD->getStringVectorSetting("secProducts");
  allProducts = priProducts;
  allProducts.insert( allProducts.end(), secProducts.begin(), secProducts.end() );
  dClasses = MD->getStringVectorSetting("dClasses");
  pDClasses; // production diameter classes: exclude the fist diameter class below 15 cm
  pDClasses.insert(pDClasses.end(), dClasses.begin()+1, dClasses.end() );
  fTypes= MD->getForTypeIds();
  l2r = MD->getRegionIds();
  regType = MTHREAD->MD->getStringSetting("regType"); // how the regeneration should be computed (exogenous, from hr, from allocation choises)
  expType = MD->getDoubleSetting("expType");
  rescaleFrequencies = MD->getBoolSetting("rescaleFrequencies");
  if((expType<0 || expType>1) && expType != -1){
    msgOut(MSG_CRITICAL_ERROR, "expType parameter must be between 1 (expectations) and 0 (adaptative) or -1 (fixed).");
  }
  mr = MD->getDoubleSetting("mr");
}

Referenced by runInitPeriod().

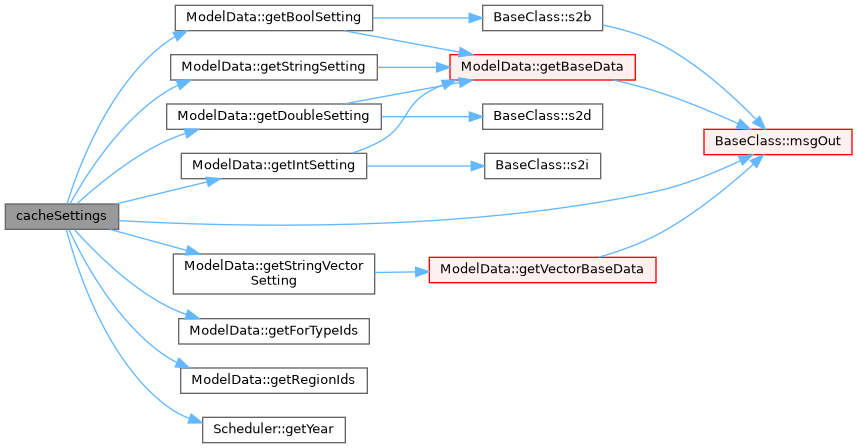

Here is the call graph for this function:

Here is the caller graph for this function:

computeCumulativeData()

void computeCumulativeData

(

)

computes cumTp, vHa, cumTp_exp, vHa_exp,

Computing some fully exogenous parameters that require complex operations, e.g. cumulative time of passage or volume per hectare. This happen at the very beginning of the init period and after each simulated year

It doesn't include tp and mort multipliers, but this could be added as now there is a regional versiopn of them and not just a pixel version.

    param expType Specify how the forest owners (those that make the investments) behave will be the time of passage in the future in order to calculate the cumulative time of passage in turn used to discount future revenues.
    Will forest owners behave adaptively believing the time of passage between diameter classes will be like the observed one at time they make decision (0) or they will have full expectations believing forecasts (1) or something in the middle ?

For compatibility with the GAMS code, a -1 value means using initial simulation tp values (fixed cumTp)."

Definition at line 728 of file ModelCore.cpp.

                                {

    msgOut(MSG_INFO, "Starting computing some cumulative values..");
    int thisYear     =  MTHREAD->SCD->getYear();

    // debug
    //cout << "cumTp and vHa by dc:" << endl;
    //cout << "regId|ft|varName|0|15|25|35|45|55|65|75|85|95|150|" << endl;

    for(uint r2= 0; r2<regIds2.size();r2++){
      int regId = regIds2[r2];
      for(uint j=0;j<fTypes.size();j++){
        string ft = fTypes[j];
        // calculating the cumulative time of passage and the (cumulativelly generated) vHa for each diameter class (depending on forest owners diam growth expectations)
        //loop(u$(ord(u)=1),
        //   cumTp(u,i,lambda,essence) = tp_u1(i,essence,lambda);
        //);
        //loop(u$(ord(u)>1),
        //   cumTp(u,i,lambda,essence) = cumTp(u-1,i,lambda,essence)+tp(u-1,i,lambda,essence);
        //);
        ////ceil(x) DNLP returns the smallest integer number greater than or equal to x
        //loop( (u,i,lambda,essence),
        //  cumTp(u,i,lambda,essence) =   ceil(cumTp(u,i,lambda,essence));
        //);
        /**
        param expType Specify how the forest owners (those that make the investments) behave will be the time of passage in the future in order to calculate the cumulative time of passage in turn used to discount future revenues.
        Will forest owners behave adaptively believing the time of passage between diameter classes will be like the observed one at time they make decision (0) or they will have full expectations believing forecasts (1) or something in the middle ?
For compatibility with the GAMS code, a -1 value means using initial simulation tp values (fixed cumTp)."
        */
                vector <double> cumTp_temp;        // cumulative time of passage to REACH a diameter class (tp is to LEAVE to the next one)
                vector <double> vHa_temp;          // volume at hectar by each diameter class [m^3/ha]
                vector <double> cumAlive_temp;     // cumulated alive rate to reach a given diameter class
                vector <double> cumTp_exp_temp;    // "expected" version of cumTp
                vector <double> vHa_exp_temp;      // "expected" version of vHa
                vector <double> cumAlive_exp_temp; // "expected" version of cumMort

        MD->setErrorLevel(MSG_NO_MSG); // as otherwise on 2007 otherwise sfd() will complain that is filling multiple years (2006 and 2007)
        for (uint u=0; u<dClasses.size(); u++){
          string dc = dClasses[u];
          double cumTp_u, cumTp_u_exp, cumTp_u_noExp, cumTp_u_fullExp;
          double vHa_u, vHa_u_exp, vHa_u_noExp, vHa_u_fullExp, beta, beta_exp, beta_noExp, beta_fullExp, mort, mort_exp, mort_noExp, mort_fullExp;
          double tp_u, tp_exp;
                    double cumAlive_u, cumAlive_exp_u;

          if(u==0) {
            // first diameter class.. expected  and real values are the same (0)
            cumTp_u = 0.;
            vHa_u   = 0.;
                        cumAlive_u = 1.;
            cumTp_temp.push_back(cumTp_u);
            cumTp_exp_temp.push_back(cumTp_u);
            vHa_temp.push_back(vHa_u);
            vHa_exp_temp.push_back(vHa_u);
                        cumAlive_temp.push_back(cumAlive_u);
                        cumAlive_exp_temp.push_back(cumAlive_u);
            sfd(cumTp_u,"cumTp",regId,ft,dc,DATA_NOW,true);
            sfd(cumTp_u,"cumTp_exp",regId,ft,dc,DATA_NOW,true);
            sfd(vHa_u,  "vHa",regId,ft,dc,DATA_NOW,true);
            sfd(vHa_u,  "vHa_exp",regId,ft,dc,DATA_NOW,true);
                        sfd(cumAlive_u,"cumAlive",regId,ft,dc,DATA_NOW,true);
                        sfd(cumAlive_u,"cumAlive_exp",regId,ft,dc,DATA_NOW,true);
          } else {
            // other diameter classes.. first dealing with real values and then with expected ones..
            // real values..
            cumTp_u = cumTp_temp[u-1] + gfd("tp",regId,ft,dClasses[u-1],thisYear); // it adds to the time of passage to reach the previous diameter class the time of passage that there should be to reach this diameter class in the year where the previous diameter class will be reached
            if (u==1){
              vHa_u = gfd("entryVolHa",regId,ft,"",thisYear);
                            mort = 0.; // not info about mortality first diameter class ("00")
            } else {
              mort = 1-pow(1-gfd("mortCoef",regId,ft,dClasses[u-1],thisYear),gfd("tp",regId,ft,dClasses[u-1],thisYear)); // mortality of the previous diameter class
                            beta = gfd("betaCoef",regId,ft,dc, thisYear);
              vHa_u = vHa_temp[u-1]*beta*(1-mort);
            }
                        cumAlive_u = max(0.,cumAlive_temp[u-1]*(1-mort));
                        cumAlive_temp.push_back(cumAlive_u);
            cumTp_temp.push_back(cumTp_u);
            vHa_temp.push_back(vHa_u);
            sfd(cumTp_u,"cumTp",regId,ft,dc,DATA_NOW,true);
            sfd(vHa_u,"vHa",regId,ft,dc,DATA_NOW,true);
                        sfd(cumAlive_u,"cumAlive",regId,ft,dc,DATA_NOW,true);

            // expected values..
            if (expType == -1){
              cumTp_u_exp = cumTp_exp_temp[u-1]+gfd("tp",regId,ft,dClasses[u-1],firstYear); // it adds to the time of passage to reach the previous diameter class the time of passage that there should be to reach this diameter class in the year where the previous diameter class will be reached
              cumTp_exp_temp.push_back(cumTp_u_exp);
              if(u==1) {
                vHa_u_exp = gfd("entryVolHa",regId,ft,"",firstYear);
                                mort_exp = 0.; // not info about mortality first diameter class ("00")
              } else {
                mort_exp  = 1-pow(1-gfd("mortCoef",regId,ft,dClasses[u-1], firstYear),gfd("tp",regId,ft,dClasses[u-1],firstYear)) ; // mortality rate of previous diameter class
                beta_exp  = gfd("betaCoef",regId,ft,dc, firstYear);
                vHa_u_exp = vHa_exp_temp[u-1]*beta_exp*(1-mort_exp);
              }
            } else {
              cumTp_u_noExp   = cumTp_exp_temp[u-1]+gfd("tp",regId,ft,dClasses[u-1]);
              cumTp_u_fullExp = cumTp_exp_temp[u-1]+gfd("tp",regId,ft,dClasses[u-1],thisYear+ceil(cumTp_exp_temp[u-1])); // it adds to the time of passage to reach the previous diameter class the time of passage that there should be to reach this diameter class in the year where the previous diameter class will be reached
              cumTp_u_exp     = cumTp_u_fullExp*expType+cumTp_u_noExp*(1-expType);
              cumTp_exp_temp.push_back(cumTp_u_exp);
              if(u==1) {
                vHa_u_noExp   = gfd("entryVolHa",regId,ft,"",DATA_NOW);
                vHa_u_fullExp = gfd("entryVolHa",regId,ft,"",thisYear+ceil(cumTp_u));
                vHa_u_exp     = vHa_u_fullExp*expType+vHa_u_noExp*(1-expType);
                                mort_exp      = 0. ;
              } else {
                mort_noExp   = 1-pow(1-gfd("mortCoef",regId,ft,dClasses[u-1], DATA_NOW),cumTp_exp_temp[u]-cumTp_exp_temp[u-1]);
                mort_fullExp = 1-pow(1-gfd("mortCoef",regId,ft,dClasses[u-1],thisYear+ceil(cumTp_temp[u-1])),cumTp_exp_temp[u]-cumTp_exp_temp[u-1]); // mortality of the previous diameter class
                beta_noExp   = gfd("betaCoef",regId,ft,dc, DATA_NOW);
                beta_fullExp = gfd("betaCoef",regId,ft,dc, thisYear+ceil(cumTp_u));
                mort_exp     = mort_fullExp*expType+mort_noExp*(1-expType);
                beta_exp     = beta_fullExp*expType+beta_noExp*(1-expType);
                vHa_u_exp    = vHa_exp_temp[u-1]*beta_exp*(1-mort_exp);
              }
            }
            vHa_exp_temp.push_back(vHa_u_exp);
                        cumAlive_exp_u = max(0.,cumAlive_exp_temp[u-1]*(1-mort_exp));
                        cumAlive_exp_temp.push_back(cumAlive_exp_u);
            sfd(cumTp_u_exp,"cumTp_exp",regId,ft,dc,DATA_NOW,true);
            sfd(vHa_u_exp,  "vHa_exp",regId,ft,dc,DATA_NOW,true);
                        sfd(cumAlive_exp_u,"cumAlive_exp",regId,ft,dc,DATA_NOW,true);
                        //sfd(cumMort_u_exp,  "cumMort_exp",regId,ft,dc,DATA_NOW,true);

                        //cout << "********" << endl;
                        //cout << "dc: " << dClasses[u] << endl ;
                        //cout << "mort: " << mort << endl;
                        //cout << "mort_exp: " << mort_exp << endl;
                        //cout << "cumAlive: " << cumAlive_u << endl;
                        //cout << "cumAlive_exp: " << cumAlive_exp_u << endl;


          }

        } // end of each diam class


        //            // debug stuff on vHa
        //            cout << regId << "|" << ft << "|cumTp_temp|";
        //            for (uint u=0; u<dClasses.size(); u++){
        //                cout << cumTp_temp.at(u)<<"|";
        //            }
        //            cout << endl;
        //            cout << regId << "|" << ft << "|cumTp_exp|";
        //            for (uint u=0; u<dClasses.size(); u++){
        //                cout << cumTp_exp_temp.at(u)<<"|";
        //            }
        //            cout << endl;
        //            cout << regId << "|" << ft << "|vHa_temp|";
        //            for (uint u=0; u<dClasses.size(); u++){
        //                cout << vHa_temp.at(u)<<"|";
        //            }
        //            cout << endl;
        //            cout << regId << "|" << ft << "|vHa_exp|";
        //            for (uint u=0; u<dClasses.size(); u++){
        //                cout << vHa_exp_temp.at(u)<<"|";
        //            }
        //            cout << endl;


      } // end of each ft
    } // end of each region
    MD->setErrorLevel(MSG_ERROR);
}

Referenced by runInitPeriod(), and runSimulationYear().

Here is the call graph for this function:

Here is the caller graph for this function:

computeInventary()

void computeInventary

(

)

in=f(vol_t-1)

Definition at line 671 of file ModelCore.cpp.

                           {
  msgOut(MSG_INFO, "Starting computing inventary available for this year..");
  int thisYear = MTHREAD->SCD->getYear();

  // In(i,p_pr,t)   =   sum((u,lambda,essence),prov(u,essence,lambda,p_pr)*V(u,i,lambda,essence,t-1));
  for(uint i=0;i<regIds2.size();i++){
    int r2 = regIds2[i];
    for(uint pp=0;pp<priProducts.size();pp++){
      double in = 0;
      for(uint ft=0;ft<fTypes.size();ft++){
        for(uint dc=0;dc<dClasses.size();dc++){
          double vol = dc?gfd("vol",r2,fTypes[ft],dClasses[dc],thisYear-1):0.;
          in += app(priProducts[pp],fTypes[ft],dClasses[dc])*vol;
        }
      }
      spd(in,"in",r2,priProducts[pp],thisYear,true);

    }
  } // end of for each region
}

Referenced by runInitPeriod(), and runSimulationYear().

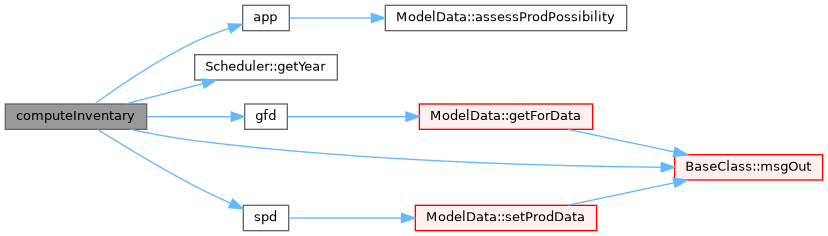

Here is the call graph for this function:

Here is the caller graph for this function:

gfd()

double gfd ( const string &  type_h, const int &  regId_h, const string &  forType_h, const string &  freeDim_h, const int &  year = DATA_NOW  ) const

inlineprivate

Definition at line 67 of file ModelCore.h.

{return MTHREAD->MD->getForData(type_h, regId_h, forType_h, freeDim_h, year);};

Referenced by computeCumulativeData(), computeInventary(), runBiologicalModule(), runManagementModule(), and updateMapAreas().

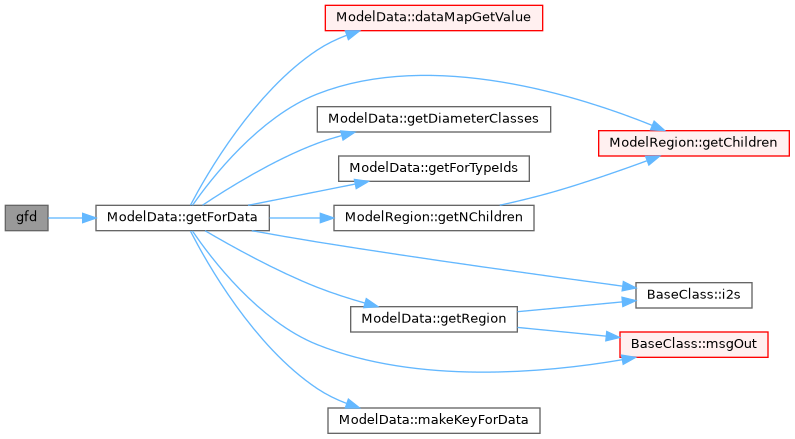

Here is the call graph for this function:

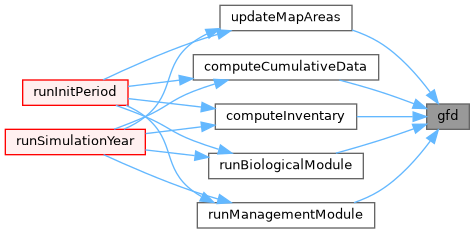

Here is the caller graph for this function:

gpd()

double gpd ( const string &  type_h, const int &  regId_h, const string &  prodId_h, const int &  year = DATA_NOW, const string &  freeDim_h = ""  ) const

inlineprivate

Definition at line 66 of file ModelCore.h.

{return MTHREAD->MD->getProdData(type_h, regId_h, prodId_h, year, freeDim_h);};

Referenced by initMarketModule(), runBiologicalModule(), runManagementModule(), and runMarketModule().

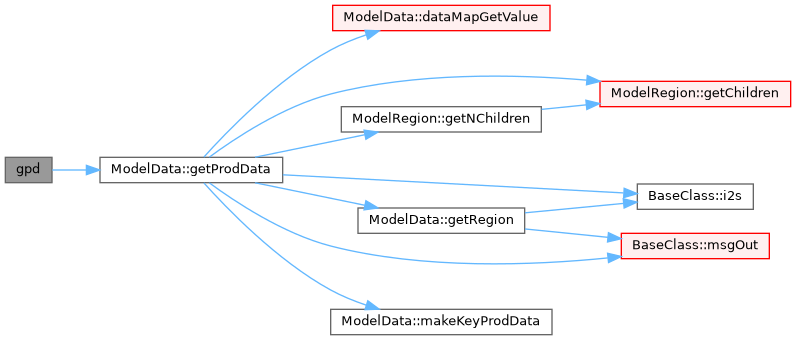

Here is the call graph for this function:

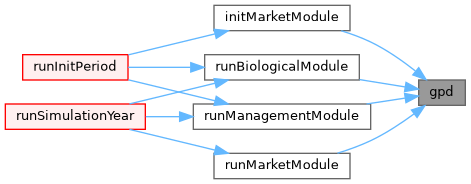

Here is the caller graph for this function:

initMarketModule()

void initMarketModule

(

)

computes st and pw for second year and several needed-only-at-t0-vars for the market module

Definition at line 93 of file ModelCore.cpp.

                           {
  msgOut(MSG_INFO, "Starting market module (init stage)..");
  for(uint i=0;i<regIds2.size();i++){
    int r2 = regIds2[i];

    //RPAR('pl',i,p_tr,t-1)   =  sum(p_pr, a(p_pr,p_tr)*RPAR('pl',i,p_pr,t-1))+m(i,p_tr);
    for(uint sp=0;sp<secProducts.size();sp++){
      double value = 0;
      for (uint pp=0;pp<priProducts.size();pp++){
        value += gpd("pl",r2,priProducts[pp],secondYear)*
             gpd("a",r2,priProducts[pp],secondYear,secProducts[sp]);
      }
      value += gpd("m",r2,secProducts[sp],secondYear);
      spd(value,"pl",r2,secProducts[sp],secondYear);
    }
    // RPAR('dl',i,p_pr,t-1)   =  sum(p_tr, a(p_pr,p_tr)*RPAR('sl',i,p_tr,t-1));
    for (uint pp=0;pp<priProducts.size();pp++){
      double value=0;
      for(uint sp=0;sp<secProducts.size();sp++){
        value += gpd("sl",r2,secProducts[sp],secondYear)*
             gpd("a",r2,priProducts[pp],secondYear, secProducts[sp]);
      }
      spd(value,"dl",r2,priProducts[pp],secondYear,true);
    }
    // RPAR('st',i,prd,t-1)    =  RPAR('sl',i,prd,t-1)+RPAR('sa',i,prd,t-1);
    // RPAR('dt',i,prd,t-1)    =  RPAR('dl',i,prd,t-1)+RPAR('da',i,prd,t-1);
    for (uint ap=0;ap<allProducts.size();ap++){
      double stvalue =   gpd("sl",r2,allProducts[ap],secondYear)
               + gpd("sa",r2,allProducts[ap],secondYear);
      double dtvalue =   gpd("dl",r2,allProducts[ap],secondYear)
               + gpd("da",r2,allProducts[ap],secondYear);
      spd(stvalue,"st",r2,allProducts[ap],secondYear,true);
      spd(dtvalue,"dt",r2,allProducts[ap],secondYear,true);
    }

    // q1(i,p_tr)  =  1/(1+((RPAR('dl',i,p_tr,t-1)/RPAR('da',i,p_tr,t-1))**(1/psi(i,p_tr)))*(RPAR('pl',i,p_tr,t-1)/PT(p_tr,t-1)));
    // p1(i,p_tr)              =  1-q1(i,p_tr);
    // RPAR('dc',i,p_tr,t-1)   =  (q1(i,p_tr)*RPAR('da',i,p_tr,t-1)**((psi(i,p_tr)-1)/psi(i,p_tr))+ p1(i,p_tr)*RPAR('dl',i,p_tr,t-1)**((psi(i,p_tr)-1)/psi(i,p_tr)))**(psi(i,p_tr)/(psi(i,p_tr)-1));
    // RPAR('pc',i,p_tr,t-1)   =  (RPAR('da',i,p_tr,t-1)/RPAR('dc',i,p_tr,t-1))*PT(p_tr,t-1)+(RPAR('dl',i,p_tr,t-1)/RPAR('dc',i,p_tr,t-1))*RPAR('pl',i,p_tr,t-1);
    // RPAR('pc',i,p_pr,t-1)   =  (RPAR('sa',i,p_pr,t-1)/RPAR('sc',i,p_pr,t-1))*PT(p_pr,t-1)+(RPAR('sl',i,p_pr,t-1)/RPAR('sc',i,p_pr,t-1))*RPAR('pl',i,p_pr,t-1);
    // RPAR('pw',i,p_tr,t-1)   =  (RPAR('dl',i,p_tr,t-1)*RPAR('pl',i,p_tr,t-1)+RPAR('da',i,p_tr,t-1)*PT(p_tr,t-1))/RPAR('dt',i,p_tr,t-1) ; //changed 20120419
    // K(i,p_tr,t-1)           =  k1(i,p_tr)*RPAR('sl',i,p_tr,t-1);
    for(uint sp=0;sp<secProducts.size();sp++){
      double psi = gpd("psi",r2,secProducts[sp],secondYear);
      double dl  = gpd("dl",r2,secProducts[sp],secondYear);
      double da  = gpd("da",r2,secProducts[sp],secondYear);
      double pl  = gpd("pl",r2,secProducts[sp],secondYear);
      double sl  = gpd("sl",r2,secProducts[sp],secondYear);
      double k1  = gpd("k1",r2,secProducts[sp],secondYear);
      double pWo = gpd("pl",WL2,secProducts[sp],secondYear); // World price (local price for region 99999)


      double q1  = 1/ ( 1+pow(dl/da,1/psi)*(pl/pWo) );
      double p1  = 1-q1;
      double dc  = pow(
              q1*pow(da,(psi-1)/psi) + p1*pow(dl,(psi-1)/psi)
             ,
              psi/(psi-1)
             );
      double pc = (da/dc)*pWo
             +(dl/dc)*pl;
      double pw = (dl*pl+da*pWo)/(dl+da);
      double k = k1*sl;

      spd(q1,"q1",r2,secProducts[sp],firstYear,true);
      spd(p1,"p1",r2,secProducts[sp],firstYear,true);
      spd(dc,"dc",r2,secProducts[sp],secondYear,true);
      spd(pc,"pc",r2,secProducts[sp],secondYear,true);
      spd(pw,"pw",r2,secProducts[sp],secondYear,true);
      spd(k,"k",r2,secProducts[sp],secondYear,true);
    }

    // t1(i,p_pr)              =  1/(1+((RPAR('sl',i,p_pr,t-1)/RPAR('sa',i,p_pr,t-1))**(1/eta(i,p_pr)))*(RPAR('pl',i,p_pr,t-1)/PT(p_pr,t-1)));
    // r1(i,p_pr)              =  1-t1(i,p_pr);
    // RPAR('sc',i,p_pr,t-1)   =  (t1(i,p_pr)*RPAR('sa',i,p_pr,t-1)**((eta(i,p_pr)-1)/eta(i,p_pr))+ r1(i,p_pr)*RPAR('sl',i,p_pr,t-1)**((eta(i,p_pr)-1)/eta(i,p_pr)))**(eta(i,p_pr)/(eta(i,p_pr)-1))
    // RPAR('pc',i,p_pr,t-1)   =  (RPAR('sa',i,p_pr,t-1)/RPAR('sc',i,p_pr,t-1))*PT(p_pr,t-1)+(RPAR('sl',i,p_pr,t-1)/RPAR('sc',i,p_pr,t-1))*RPAR('pl',i,p_pr,t-1);
    // RPAR('pw',i,p_pr,t-1)   =  (RPAR('sl',i,p_pr,t-1)*RPAR('pl',i,p_pr,t-1)+RPAR('sa',i,p_pr,t-1)*PT(p_pr,t-1))/RPAR('st',i,p_pr,t-1) ; //changed 20120419
    for(uint pp=0;pp<priProducts.size();pp++){

      double sl  = gpd("sl",r2,priProducts[pp],secondYear);
      double sa  = gpd("sa",r2,priProducts[pp],secondYear);
      double eta = gpd("eta",r2,priProducts[pp],secondYear);
      double pl  = gpd("pl",r2,priProducts[pp],secondYear);
      double pWo = gpd("pl",WL2,priProducts[pp],secondYear); // World price (local price for region 99999)


      double t1 = 1/ ( 1+(pow(sl/sa,1/eta))*(pl/pWo) );
      double r1 = 1-t1;
      double sc = pow(
               t1*pow(sa,(eta-1)/eta) + r1*pow(sl,(eta-1)/eta)
            ,
               eta/(eta-1)
            );
      double pc = (sa/sc)*pWo+(sl/sc)*pl;
      double pw = (sl*pl+sa*pWo)/(sl+sa);

      spd(t1,"t1",r2,priProducts[pp],firstYear,true);
      spd(r1,"r1",r2,priProducts[pp],firstYear,true);
      spd(sc,"sc",r2,priProducts[pp],secondYear,true);
      spd(pc,"pc",r2,priProducts[pp],secondYear,true);
      spd(pw,"pw",r2,priProducts[pp],secondYear,true);
    }
  } // end of each region


  // initializing the exports to zero quantities
  for(uint r1=0;r1<l2r.size();r1++){
    for(uint r2=0;r2<l2r[r1].size();r2++){
      for(uint p=0;p<allProducts.size();p++){
       for(uint r2To=0;r2To<l2r[r1].size();r2To++){
          spd(0,"rt",l2r[r1][r2],allProducts[p],secondYear,true,i2s(l2r[r1][r2To]));  // regional trade, it was exp in gams
        }
      }
    }
  } // end of r1 region
}

Referenced by runInitPeriod().

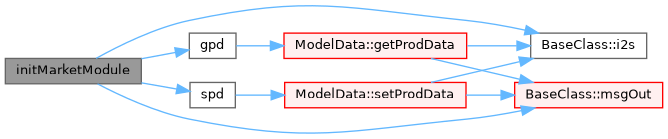

Here is the call graph for this function:

Here is the caller graph for this function:

runBiologicalModule()

void runBiologicalModule

(

)

computes hV, hArea and new vol at end of year

Todo:

Harvest volumes from death trees

Definition at line 363 of file ModelCore.cpp.

                              {

  msgOut(MSG_INFO, "Starting resource module..");
  hV_byPrd.clear();
  int thisYear = MTHREAD->SCD->getYear();
  int previousYear = thisYear-1;

  for(uint i=0;i<regIds2.size();i++){

    int r2 = regIds2[i];
    int regId = r2;
    // Post optimisation biological mobule..
    vector < vector < vector <double> > > hV_byPrd_regional;
    for(uint j=0;j<fTypes.size();j++){
      string ft = fTypes[j];
      vector < vector <double> > hV_byPrd_ft;

      // calculating the regeneration..
      // if we are in a year where the time of passage has not yet been reached
      // for the specific i,e,l then we use the exogenous Vregen, otherwise we
      // calculate it
      //if ( not scen("fxVreg") ,
      //  loop( (i,essence,lambda),
      //    if( ord(t)>=(tp_u1(i,essence,lambda)+2),
      //      Vregen(i,lambda,essence,t)=regArea(i,essence,lambda,t-tp_u1(i,essence,lambda))*volHa_u1(i,essence,lambda)/1000000   ;
      //    );
      //  );
      //);
            int tp_u0 = gfd("tp",regId,ft,dClasses[0]); // time of passage to reach the first diameter class // bug 20140318, added ceil
      if(regType != "fixed" && (thisYear-secondYear) >= tp_u0 ) { // T.O.D.O to be checked -> 20121109 OK
        double pastRegArea = gfd("regArea",regId,ft,"",thisYear-tp_u0);
        double vHa = gfd("vHa",regId,ft,dClasses[1]);
        //cout << "vHa - entryVolHa: " << vHa << " / " << entryVolHa << endl;
        double vReg = pastRegArea*vHa/1000000; // T.O.D.O: check the 1000000. -> Should be ok, as area in ha vol in Mm^3
        sfd(vReg,"vReg",regId,ft,"");
      }

      for (uint u=0; u<dClasses.size(); u++){
        string dc = dClasses[u];
        double hr = 0;
        double pastYearVol = u?gfd("vol",regId,ft,dc,previousYear):0.;
        double hV_mort = 0.; /// \todo Harvest volumes from death trees
        vector <double> hV_byPrd_dc;

        // harvesting rate & volumes...
        //hr(u,i,essence,lambda,t) =    sum(p_pr, prov(u,essence,lambda,p_pr)*RPAR('st',i,p_pr,t)/In(i,p_pr,t));
        //hV(u,i,essence,lambda,t) = hr(u,i,essence,lambda,t) * V(u,i,lambda,essence,t-1);
        //hV_byPrd(u,i,essence,lambda,p_pr,t) =  prov(u,essence,lambda,p_pr)*(RPAR('st',i,p_pr,t)/In(i,p_pr,t))*V(u,i,lambda,essence,t-1);
                //double debug =0;
        for(uint pp=0;pp<priProducts.size();pp++){
          double st = gpd("st",regId,priProducts[pp]);
          double in = gpd("in",regId,priProducts[pp]);
          double hr_pr = u?app(priProducts[pp],ft,dc)*st/ in:0;
          double hV_byPrd_dc_prd = hr_pr*pastYearVol;
          hr += hr_pr;
          hV_byPrd_dc.push_back( hV_byPrd_dc_prd);
                    //debug += hV_byPrd_dc_prd;
        }
        double hV = hr*pastYearVol;
                //double debug2 = debug-hV;

                // test passed 20131203
                //if(debug2  < -0.000000000001 || debug2  > 0.000000000001){
                //    cout << "Problems!" << endl;
                //}

        // post harvesting remained volumes computation..
        // loop(u$(ord(u)=1),
        //  first diameter class, no harvesting and fixed regenaration..
        //  V(u,i,lambda,essence,t)=(1-1/(tp(u,i,lambda,essence))-mort(u,i,lambda,essence) )*V(u,i,lambda,essence,t-1)
        //                         +Vregen(i,lambda,essence,t);
        // );
        // loop(u$(ord(u)>1),
        //  generic case..
        //  V(u,i,lambda,essence,t)=((1-1/(tp(u,i,lambda,essence))
        //                         -mort(u,i,lambda,essence) - hr(u,i,essence,lambda,t))*V(u,i,lambda,essence,t-1)
        //                         +(1/(tp(u-1,i,lambda,essence)))*beta(u,i,lambda,essence)*V(u-1,i,lambda,essence,t-1));
        double vol;
        double newMortVol;    // new mortality volumes
        double tp          = gfd("tp",regId,ft,dc);
        double mort        = u?gfd("mortCoef",regId,ft,dc):0.;
        double vReg        = gfd("vReg",regId,ft,""); // Taking it from the memory database as we could be in a fixed vReg scenario and not having calculated it from above!
        double beta        = u?gfd("betaCoef",regId,ft,dc):0.;
        //double hv2fa       = gfd("hv2fa",regId,ft,dc);
        double vHa         = gfd("vHa",regId,ft,dc);
        double finalHarvestFlag = gfd("finalHarvestFlag",regId,ft,dc);

        if(u==0){
          vol = 0.;
        } else if(u==1){
          vol = (1-1/tp-mort)*pastYearVol+vReg;
          newMortVol = mort*pastYearVol;
          double debug = vol;
        } else {
          double inc = (u==dClasses.size()-1)?0:1./tp; // we exclude the possibility for trees in the last diameter class to move to an upper class
          double tp_1 = gfd("tp",regId,ft,dClasses[u-1]);
          double pastYearVol_1 = gfd("vol",regId,ft,dClasses[u-1],previousYear);
          vol = (1-inc-mort-hr)*pastYearVol+(1/tp_1)*beta*pastYearVol_1;
          newMortVol = mort*pastYearVol;
          double debug = vol;
        }
        double freeArea_byU = u?finalHarvestFlag*1000000*hV/vHa:0; // volumes are in Mm^3, area in ha, vHa in m^3/ha
        //double debug = hv2fa*hr*pastYearVol*100;
        //cout << "regId|ft|dc| debug | freeArea: " << r2 << "|"<<ft<<"|"<<dc<<"| "<< debug << " | " << freeArea_byU << endl;

        sfd(hr,"hr",regId,ft,dc,DATA_NOW,true);
        sfd(hV,"hV",regId,ft,dc,DATA_NOW,true);
        sfd(vol,"vol",regId,ft,dc,DATA_NOW,true); // allowCreate needed for u==0
        sfd(newMortVol,"mortV",regId,ft,dc,DATA_NOW,true);

        sfd(freeArea_byU,"harvestedArea",regId,ft,dc,DATA_NOW, true);
        hV_byPrd_ft.push_back(hV_byPrd_dc);
      } // end foreach diameter classes
      hV_byPrd_regional.push_back(hV_byPrd_ft);
    } // end of each forest type
    hV_byPrd.push_back(hV_byPrd_regional);
  } // end of for each region

}

Referenced by runInitPeriod(), and runSimulationYear().

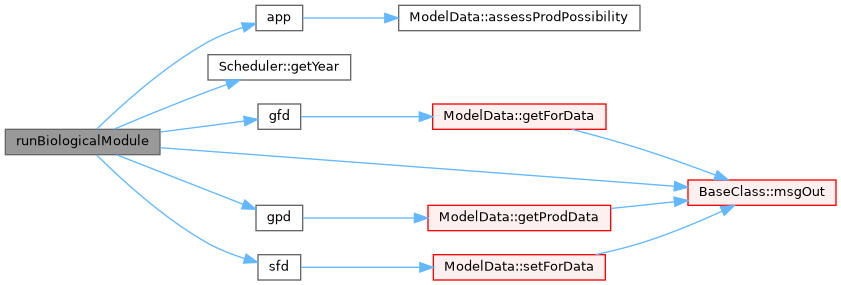

Here is the call graph for this function:

Here is the caller graph for this function:

runInitPeriod()

void runInitPeriod

(

)

IMPORTANT NOTE: Volumes in Mm^3, Areas in the model in Ha (10000 m^2), in the layers in m^2

Some importan notes: V (volumes) -> at the end of the year In (inventary) -> at the beginning of the year Volumes are in Mm^3, Areas in the model in Ha (10000 m^2), in the layers in m^2

Definition at line 50 of file ModelCore.cpp.

                        {
  /**
  Some importan notes:
  V (volumes) -> at the end of the year
  In (inventary) -> at the beginning of the year
  Volumes are in Mm^3, Areas in the model in Ha (10000 m^2), in the layers in m^2
  */
  cacheSettings();             // cashe things like first year, second year, dClasses...
  initMarketModule();          // inside it uses first year, second year
  MTHREAD->DO->print();
  MTHREAD->SCD->advanceYear(); // 2005->2006
  computeInventary();          // in=f(vol_t-1)
  computeCumulativeData();     // compute cumTp_exp, vHa_exp, vHa
  runBiologicalModule();       //
  runManagementModule();
  updateMapAreas();            // update the forArea_{ft} layer on each pixel as old value-hArea+regArea
  MTHREAD->DO->print();
}

Referenced by Init::setInitLevel3().

Here is the call graph for this function:

Here is the caller graph for this function:

runManagementModule()

void runManagementModule

(

)

computes regArea and expectedReturns

see @ModelData::calculateAnnualisedEquivalent

Definition at line 484 of file ModelCore.cpp.

                              {

  msgOut(MSG_INFO, "Starting management module..");
    //int thisYear = MTHREAD->SCD->getYear();
    //int previousYear = thisYear-1;
    MTHREAD->DO->expReturnsDebug.clear();
    int outputLevel = MTHREAD->MD->getIntSetting("outputLevel");
    bool weightedAverageExpectedReturns = MTHREAD->MD->getBoolSetting("weightedAverageExpectedReturns");

    //vector <vector < vector <vector <vector <double> > > > > expReturnsDebug; ///< l2_region, for type, d.c., pr prod, variable name
    //cout << "year/dc/pp/eai/cumTp/vHa/pw" << endl;

    int thisYear = MTHREAD->SCD->getYear();
    double ir = MTHREAD->MD->getDoubleSetting("ir");

  for(uint i=0;i<regIds2.size();i++){
        vector < vector <vector <vector <double> > > >  expReturnsDebug_region;

    int r2 = regIds2[i];
    int regId = r2;
    vector <double> cachedExpectedReturnsByFt;

    // PART 1: COMPUTING THE EXPECTED RETURNS FOR EACH FOREST TYPE

    for(uint j=0;j<fTypes.size();j++){
      string ft = fTypes[j];
            vector <vector <vector <double> > >  expReturnsDebug_ft;
      // Post optimisation management mobule..

      //if(regType != "fixed" && regType != "fromHrLevel"){
      // 20120910, Antonello: changed.. calculating the expected returns also for fixed and fromHrLevel regeneration (then not used but gives indication)
      // calculating the expected returns..
      //  loop ( (u,i,essence,lambda,p_pr),
      //    if (sum(u2, hV(u2,i,essence,lambda,t))= 0,
      //      expRetPondCoef(u,i,essence,lambda,p_pr) = 0;
      //    else
      //      expRetPondCoef(u,i,essence,lambda,p_pr) = hV_byPrd(u,i,essence,lambda,p_pr,t)/ sum(u2, hV(u2,i,essence,lambda,t));
      //    );
      //  );
      //  expReturns(i,essence,lambda) = sum( (u,p_pr),
      //            RPAR("pl",i,p_pr,t)*hv2fa(i,essence,lambda,u)*(1/df_byFT(u,i,lambda,essence))*        // df_byFT(u,i,lambda,essence)
      //            expRetPondCoef(u,i,essence,lambda,p_pr)
      //            );
      double hV_byFT = 0.; // gfd("hV",regId,ft,DIAM_PROD); // it must include only final harvested products in order to act as weightering agent
      double expReturns = 0;


      for (uint u=0; u<dClasses.size(); u++){
        string dc = dClasses[u];
        double finalHarvestFlag = gfd("finalHarvestFlag",regId,ft,dc);
                double hV = gfd("hV",regId,ft,dc);
                hV_byFT += finalHarvestFlag * hV;
      }

            if(hV_byFT==0. || !weightedAverageExpectedReturns){ // nothing has been harvested in this pixel for this specific forest type. Let's calculate the combination product/diameter class with the highest expected return
        for (uint u=0; u<dClasses.size(); u++){
                    vector <vector <double> >  expReturnsDebug_dc;
          string dc = dClasses[u];
          double vHa              = gfd("vHa_exp",regId,ft,dc);
          double finalHarvestFlag = gfd("finalHarvestFlag",regId,ft,dc);
          double cumTp_u          = gfd("cumTp_exp",regId,ft,dc);
          for (uint pp=0;pp<priProducts.size();pp++){
                        vector <double>  expReturnsDebug_pp;
            double pw    = gpd("pw",regId,priProducts[pp]);
            double raw_amount = finalHarvestFlag*pw*vHa*app(priProducts[pp],ft,dc); // B.U.G. 20121126, it was missing app(pp,ft,dc) !!
            double anualised_amount =  MD->calculateAnnualisedEquivalent(raw_amount,cumTp_u, ir);
                        if (anualised_amount>expReturns) {
                            expReturns=anualised_amount;
                           // if (ft == "con_highF" && regId == 11041){
                           //     cout << thisYear << "/" << dc << "/" << priProducts[pp] << "/" << anualised_amount << "/" << cumTp_u << "/" << vHa << "/" << pw << endl;
                           // }
                        }
                        if(outputLevel >= OUTVL_ALL){
                          expReturnsDebug_pp.push_back(0.0);
                          expReturnsDebug_pp.push_back(hV_byFT);
                          expReturnsDebug_pp.push_back(finalHarvestFlag);
                          expReturnsDebug_pp.push_back(0.0);
                          expReturnsDebug_pp.push_back(pw);
                          expReturnsDebug_pp.push_back(cumTp_u);
                          expReturnsDebug_pp.push_back(vHa);
                          expReturnsDebug_pp.push_back(anualised_amount);
                          expReturnsDebug_pp.push_back(0);
                        }
                        expReturnsDebug_dc.push_back(expReturnsDebug_pp);
                    } // end each pp
                    expReturnsDebug_ft.push_back(expReturnsDebug_dc);
                } // end dc
      } else {
        for (uint u=0; u<dClasses.size(); u++){
                    vector <vector <double> >  expReturnsDebug_dc;
          string dc  = dClasses[u];
          double vHa = gfd("vHa_exp",regId,ft,dc);
          double finalHarvestFlag = gfd("finalHarvestFlag",regId,ft,dc);
          double cumTp_u = gfd("cumTp_exp",regId,ft,dc);

          for (uint pp=0;pp<priProducts.size();pp++){
                        vector <double>  expReturnsDebug_pp;
            double pw    = gpd("pw",regId,priProducts[pp]);
            double pl    = gpd("pl",regId,priProducts[pp]);
            double pwor    = gpd("pl",99999,priProducts[pp]);

            double hVol_byUPp = hV_byPrd.at(i).at(j).at(u).at(pp); // harvested volumes for this product, diameter class on this region and forest type

            //double raw_amount_old = pw*hv2fa*    hVol_byUPp/hV_byFT; // old and wrong. it was in €/m^4
                        double raw_amount = finalHarvestFlag*pw*vHa* hVol_byUPp/hV_byFT; // now in €/ha if there is also thining volumes in hV_byFT, I underestimate expected returns !! TO.DO change it !! DONE, DONE...
            /**
            see @ModelData::calculateAnnualisedEquivalent
            */
            double anualised_amount =  MD->calculateAnnualisedEquivalent(raw_amount,cumTp_u, ir); //comTp is on diamClasses, u here is on pDiamClasses
            //cout << "reg|ft|dc|prd|raw amount|ann.amount|tp|hV|hVTot|pw|pl|pW|vHa|fHFlag;";
            //cout << regId <<";"<< ft <<";"<< dc <<";" << priProducts[pp] <<";" << raw_amount <<";"<< anualised_amount<<";";
            //cout << cumTp_u <<";"<< hVol_byUPp << ";" << hV_byFT << ";" << pw << ";" << pl << ";" << pwor << ";" << vHa << ";" << finalHarvestFlag << endl;
            expReturns += anualised_amount;

                        if(outputLevel >= OUTVL_ALL){
                          expReturnsDebug_pp.push_back(hVol_byUPp);
                          expReturnsDebug_pp.push_back(hV_byFT);
                          expReturnsDebug_pp.push_back(finalHarvestFlag);
                          expReturnsDebug_pp.push_back(finalHarvestFlag*hVol_byUPp/hV_byFT);
                          expReturnsDebug_pp.push_back(pw);
                          expReturnsDebug_pp.push_back(cumTp_u);
                          expReturnsDebug_pp.push_back(vHa);
                          expReturnsDebug_pp.push_back(MD->calculateAnnualisedEquivalent(finalHarvestFlag*pw*vHa,cumTp_u,ir));
                          expReturnsDebug_pp.push_back(1);
                        }
                        expReturnsDebug_dc.push_back(expReturnsDebug_pp);
                    } // end for each priProducts

                    expReturnsDebug_ft.push_back(expReturnsDebug_dc);
          //expReturnsPondCoef.push_back(expReturnsPondCoef_byPrd);
                } // end for each dc
            } // ending "it has been harvested" condition
      double debug = expReturns;
      sfd(expReturns,"expReturns",regId, ft,"",DATA_NOW,true);
      cachedExpectedReturnsByFt.push_back(expReturns);
            expReturnsDebug_region.push_back(expReturnsDebug_ft);
        } // end foreach forest
        MTHREAD->DO->expReturnsDebug.push_back(expReturnsDebug_region);


    // PART 2: ALLOCATING THE HARVESTED AREA TO REGENERATION AREA BASED ON EXPECTED RETURNS

    // calculating freeArea at the end of the year and choosing the new regeneration area..
    //freeArea(i,essence,lambda) = sum(u, hv2fa(i,essence,lambda,u)*hr(u,i,essence,lambda,t)*V(u,i,lambda,essence,t-1)*100);
    //if(scen("endVreg") ,
    //  regArea(i,essence,lambda,t) = freeArea(i,essence, lambda);   // here we could introduce in/out area from other land usages
    //else
    //  loop (i,
    //    loop( (essence,lambda),
    //      if ( expReturns(i,essence,lambda) = smax( (essence2,lambda2),expReturns(i,essence2,lambda2) ),
    //        regArea (i,essence,lambda,t) =  sum( (essence2, lambda2), freeArea(i,essence2, lambda2) ) * mr;
    //      );
    //    );
    //    regArea(i,essence,lambda,t) = freeArea(i,essence, lambda)*(1-mr);   // here we could introduce in/out area from other land usages
    //  );
    double totalHarvestedArea = gfd("harvestedArea",regId,FT_ALL,DIAM_ALL);

    double maxExpReturns = *( max_element( cachedExpectedReturnsByFt.begin(), cachedExpectedReturnsByFt.end() ) );
    bool foundMaxExpReturns = false;
    for(uint j=0;j<fTypes.size();j++){
      string ft = fTypes[j];
      double harvestedAreaForThisFT = gfd("harvestedArea",regId,ft,DIAM_ALL);
      if(regType == "fixed" || regType == "fromHrLevel"){
        // regeneration area is the harvested area..
        double harvestedArea = harvestedAreaForThisFT;
        sfd(harvestedArea,"regArea",regId,ft,"",DATA_NOW,true);
      } else {
        // regeneration area is a mix between harvested area and the harvested area of te most profitting forest type..
        double regArea = 0;
        if (!foundMaxExpReturns && cachedExpectedReturnsByFt[j] == maxExpReturns){
                    // I use the foundMaxExpReturns for the unlikely event that two forest types have the same expected return to avoid overcounting of the area
          regArea += totalHarvestedArea*mr;
          foundMaxExpReturns = true;
        }
                double freq = rescaleFrequencies ? gfd("freq_norm",regId,ft,""):gfd("freq",regId,ft,""); // "probability of presence" for unmanaged forest, added 20140318
                regArea +=  harvestedAreaForThisFT*(1-mr)*freq;
        sfd(regArea,"regArea",regId,ft,"",DATA_NOW,true);
      }
    }// end of foreach forest type
    double totalRegArea = gfd("regArea",regId,FT_ALL,DIAM_ALL);
    } // end of each r2
    //vector <vector < vector <vector <vector <double> > > > > expReturnsDebug = MTHREAD->DO->expReturnsDebug;
    //cout << "bla" << endl;

}

Referenced by runInitPeriod(), and runSimulationYear().

Here is the call graph for this function:

Here is the caller graph for this function:

runMarketModule()

void runMarketModule

(

)

computes st (supply total) and pw (weighted price). Optimisation inside.

Definition at line 211 of file ModelCore.cpp.

                          {

  // *** PRE-OPTIMISATION YEARLY OPERATIONS..

  // Updating variables
  // notes:
  // - dispo_sup: not actually entering anywhere, forgiving it for now..
  // - dc0: not needed, it is just the first year demand composite
  int thisYear = MTHREAD->SCD->getYear();
  int previousYear = thisYear-1;

  for(uint i=0;i<regIds2.size();i++){
    int r2 = regIds2[i];

    // K(i,p_tr,t)  =  (1+g1(i,p_tr))*K(i,p_tr,t-1);
    // AA(i,p_tr)   =   (sigma(p_tr)/(sigma(p_tr)+1))*RPAR('pc',i,p_tr,t-1)*(RPAR('dc',i,p_tr,t-1)**(-1/sigma(p_tr)));
    // GG(i,p_tr)   =   RPAR('dc',i,p_tr,t-1)*((RPAR('pc',i,p_tr,t-1))**(-sigma(p_tr))); //alpha
    for(uint sp=0;sp<secProducts.size();sp++){
      double g1    = gpd("g1",r2,secProducts[sp],previousYear);
      double sigma = gpd("sigma",r2,secProducts[sp]);
      double pc_1  = gpd("pc",r2,secProducts[sp],previousYear);
      double dc_1  = gpd("dc",r2,secProducts[sp],previousYear);
      double k_1   = gpd("k",r2,secProducts[sp],previousYear);

      double k  = (1+g1)*k_1;
      double aa = (sigma/(sigma+1))*pc_1*pow(dc_1,-1/sigma);
      double gg = dc_1*pow(pc_1,-sigma); //alpha

      spd(k, "k" ,r2,secProducts[sp]);
      spd(aa,"aa",r2,secProducts[sp],DATA_NOW,true);
      spd(gg,"gg",r2,secProducts[sp],DATA_NOW,true);
    }

    // BB(i,p_pr)   =   (sigma(p_pr)/(sigma(p_pr)+1))*RPAR('pc',i,p_pr,t-1)*(RPAR('sc',i,p_pr,t-1)**(-1/sigma(p_pr)))*(In(i,p_pr,t-1)/In(i,p_pr,t))**(gamma(p_pr)/sigma(p_pr));
    // FF(i,p_pr)   =   RPAR('sc',i,p_pr,t-1)*((RPAR('pc',i,p_pr,t-1))**(-sigma(p_pr)))*(In(i,p_pr,t)/In(i,p_pr,t-1))**(gamma(p_pr)); //chi
    for(uint pp=0;pp<priProducts.size();pp++){
      double gamma = gpd("gamma",r2,priProducts[pp]);
      double sigma = gpd("sigma",r2,priProducts[pp]);
      double pc_1  = gpd("pc",r2,priProducts[pp],previousYear);
      double sc_1  = gpd("sc",r2,priProducts[pp],previousYear);
      double in    = gpd("in",r2,priProducts[pp]);
      double in_1  = gpd("in",r2,priProducts[pp],previousYear);

      double bb = (sigma/(sigma+1))*pc_1*pow(sc_1,-1/sigma)*pow(in_1/in,gamma/sigma);
      double ff = sc_1*pow(pc_1,-sigma)*pow(in/in_1,gamma); //chi

      spd(bb,"bb",r2,priProducts[pp],DATA_NOW,true);
      spd(ff,"ff",r2,priProducts[pp],DATA_NOW,true);
    }

  } // end for each region in level 2 (and updating variables)

  // *** OPTIMISATION....

  // Create an instance of the IpoptApplication
  //Opt *OPTa = new Opt(MTHREAD);
  //SmartPtr<TNLP> OPTa = new Opt(MTHREAD);
  //int initialOptYear = MTHREAD->MD->getIntSetting("initialOptYear");
  SmartPtr<IpoptApplication> application = new IpoptApplication();
  //if(thisYear == initialOptYear){
    //application = new IpoptApplication();
  //} else {
  //  application->Options()->SetStringValue("warm_start_init_point", "yes");
  //}
  string linearSolver = MTHREAD->MD->getStringSetting("linearSolver",DATA_NOW);
  application->Options()->SetStringValue("linear_solver", linearSolver); // default in ipopt is ma27
  //application->Options()->SetStringValue("hessian_approximation", "limited-memory"); // quasi-newton approximation of the hessian
  //application->Options()->SetIntegerValue("mumps_mem_percent", 100);
  application->Options()->SetNumericValue("obj_scaling_factor", -1); // maximisation
  application->Options()->SetNumericValue("max_cpu_time", 1800); // max 1/2 hour to find the optimus for one single year
  application->Options()->SetStringValue("check_derivatives_for_naninf", "yes"); // detect error but may crash the application.. TO.DO catch this error!
  //application->Options()->SetStringValue("nlp_scaling_method", "equilibration-based"); // much worster
  // Initialize the IpoptApplication and process the options
  ApplicationReturnStatus status;
  status = application->Initialize();
  if (status != Solve_Succeeded) {
    printf("\n\n*** Error during initialization!\n");
    msgOut(MSG_INFO,"Error during initialization! Do you have the solver compiled for the specified linear solver?");
    return;
  }


  msgOut(MSG_INFO,"Running optimisation problem for this year (it may take a few minutes for large models)..");
  status = application->OptimizeTNLP(MTHREAD->OPT);

  // *** POST OPTIMISATION....

  // post-equilibrium variables->parameters assignments..
  // RPAR(type,i,prd,t)   =  RVAR.l(type,i,prd);
  // EX(i,j,prd,t)        =  EXP.l(i,j,prd);
  // ObjT(t)              =  Obj.l ;
  // ==> in Opt::finalize_solution()

  // Retrieve some statistics about the solve
  if (status == Solve_Succeeded) {
    Index iter_count = application->Statistics()->IterationCount();
    Number final_obj = application->Statistics()->FinalObjective();
    printf("\n*** The problem solved in %d iterations!\n", iter_count);
    printf("\n*** The final value of the objective function is %e.\n", final_obj);
    msgOut(MSG_INFO, "The problem solved successfully in "+i2s(iter_count)+" iterations.");
    int icount = iter_count;
    double obj = final_obj;
    MTHREAD->DO->printOptLog(true, icount, obj);
  } else {
    //Number final_obj = application->Statistics()->FinalObjective();
    cout << "***ERROR: MODEL DIDN'T SOLVE FOR THIS YEAR" << endl;
        msgOut(MSG_CRITICAL_ERROR, "Model DIDN'T SOLVE for this year");
    // IMPORTANT! Don't place the next two lines above the msgOut() function or it will crash in windows if the user press the stop button
        //Index iter_count = application->Statistics()->IterationCount(); // sys error if model didn't solve
        //Number final_obj = application->Statistics()->FinalObjective();
        int icount = 0;
        double obj = 0;
    MTHREAD->DO->printOptLog(false, icount, obj);
  }

  for(uint r2= 0; r2<regIds2.size();r2++){  // you can use r2<=regIds2.size() to try an out-of range memory error that is not detected other than by valgrind (with a message "Invalid read of size 4 in ModelCore::runSimulationYear() in src/ModelCore.cpp:351")
    int regId = regIds2[r2];

    //  // total supply and total demand..
    //  RPAR('st',i,prd,t)   =  RPAR('sl',i,prd,t)+RPAR('sa',i,prd,t);
    //  RPAR('dt',i,prd,t)   =  RPAR('dl',i,prd,t)+RPAR('da',i,prd,t);
    //  // weighted prices.. //changed 20120419
    //  RPAR('pw',i,p_tr,t)   =  (RPAR('dl',i,p_tr,t)*RPAR('pl',i,p_tr,t)+RPAR('da',i,p_tr,t)*PT(p_tr,t))/RPAR('dt',i,p_tr,t) ; //changed 20120419
    //  RPAR('pw',i,p_pr,t)   =  (RPAR('sl',i,p_pr,t)*RPAR('pl',i,p_pr,t)+RPAR('sa',i,p_pr,t)*PT(p_pr,t))/RPAR('st',i,p_pr,t) ; //changed 20120419
    for (uint p=0;p<allProducts.size();p++){
      double st = gpd("sl",regId,allProducts[p])+gpd("sa",regId,allProducts[p]);
      double dt = gpd("dl",regId,allProducts[p])+gpd("da",regId,allProducts[p]);
      spd(st,"st",regId,allProducts[p]);
      spd(dt,"dt",regId,allProducts[p]);
    }
    for (uint p=0;p<secProducts.size();p++){
      double dl = gpd("dl",regId,secProducts[p]);
      double pl = gpd("pl",regId,secProducts[p]);
      double da = gpd("da",regId,secProducts[p]); // bug corrected 20120913
      double pworld = gpd("pl", WL2,secProducts[p]);
      double dt = gpd("dt",regId,secProducts[p]);
      double pw = (dl*pl+da*pworld)/dt;
      spd(pw,"pw",regId,secProducts[p]);
    }
    for (uint p=0;p<priProducts.size();p++){
      double sl = gpd("sl",regId,priProducts[p]);
      double pl = gpd("pl",regId,priProducts[p]);
      double sa = gpd("sa",regId,priProducts[p]);  // bug corrected 20120913
      double pworld = gpd("pl", WL2,priProducts[p]);
      double st = gpd("st",regId,priProducts[p]);
      double pw = (sl*pl+sa*pworld)/st;
      spd(pw,"pw",regId,priProducts[p]);
    }
  } // end of foreach region
}

Referenced by runSimulationYear().

Here is the call graph for this function:

Here is the caller graph for this function:

runSimulationYear()

void runSimulationYear

(

)

Definition at line 70 of file ModelCore.cpp.

                            {
  int thisYear = MTHREAD->SCD->getYear();
  computeInventary();          // in=f(vol_t-1)
  runMarketModule();
  computeCumulativeData();     // compute cumTp_exp, vHa_exp
  runBiologicalModule();

    /*double sl = gpd("sl",11041,'softWRoundW');
    double pl = gpd("pl",11041,'softWRoundW');
    double sa = gpd("sa",11041,'softWRoundW');
    double pworld = gpd("pl", WL2,'softWRoundW');
    double st = gpd("st",11041,'softWRoundW');
    double pw = (sl*pl+sa*pworld)/st;
    cout << thisYear <<
    */

  runManagementModule();
  updateMapAreas();
  MTHREAD->DO->print();
}

Referenced by Scheduler::run().

Here is the call graph for this function:

Here is the caller graph for this function:

sfd()

void sfd ( const double &  value_h, const string &  type_h, const int &  regId_h, const string &  forType_h, const string &  freeDim_h, const int &  year = DATA_NOW, const bool &  allowCreate = false  ) const

inlineprivate

Definition at line 69 of file ModelCore.h.

{MTHREAD->MD->setForData(value_h, type_h, regId_h, forType_h, freeDim_h, year, allowCreate);};

Referenced by computeCumulativeData(), runBiologicalModule(), runManagementModule(), and updateMapAreas().

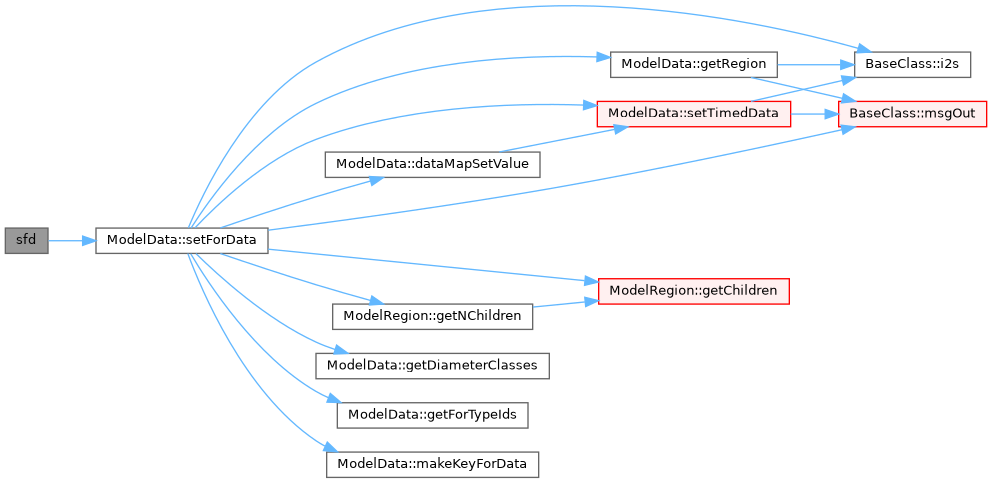

Here is the call graph for this function:

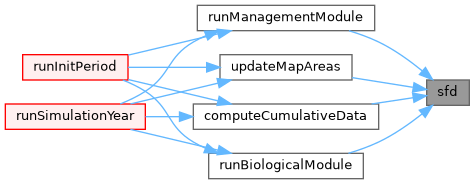

Here is the caller graph for this function:

spd()

void spd ( const double &  value_h, const string &  type_h, const int &  regId_h, const string &  prodId_h, const int &  year = DATA_NOW, const bool &  allowCreate = false, const string &  freeDim_h = ""  ) const

inlineprivate

Definition at line 68 of file ModelCore.h.

{MTHREAD->MD->setProdData(value_h, type_h, regId_h, prodId_h, year, allowCreate, freeDim_h);};

Referenced by computeInventary(), initMarketModule(), and runMarketModule().

Here is the call graph for this function:

Here is the caller graph for this function:

updateMapAreas()

void updateMapAreas

(

)

computes forArea_{ft}

This function take for each region the difference for each forest type between the harvested area and the new regeneration one and apply such delta to each pixel of the region proportionally to the area that it already hosts.

Definition at line 896 of file ModelCore.cpp.

                         {

  msgOut(MSG_INFO, "Updating map areas..");
  map<int,double> forestArea; // foresta area by each region
  pair<int,double > forestAreaPair;
    int thisYear = MTHREAD->SCD->getYear();
  vector<int> l2Regions =  MTHREAD->MD->getRegionIds(2, true);
  vector <string> fTypes =  MTHREAD->MD->getForTypeIds();
  int nFTypes = fTypes.size();
  int nL2Regions = l2Regions.size();
  for(uint i=0;i<nL2Regions;i++){
    int regId = l2Regions[i];
    vector<Pixel*> rpx = MTHREAD->GIS->getAllPlotsByRegion(regId);
    ModelRegion* reg = MTHREAD->MD->getRegion(regId);
    for(uint j=0;j<nFTypes;j++){
      string ft = fTypes[j];
            double oldRegioForArea;
            if(thisYear <= firstYear+1) {
                oldRegioForArea = reg->getValue("forArea_"+ft)/10000;
            } else {
                oldRegioForArea = gfd("forArea",regId,ft,DIAM_ALL,thisYear-1);
            }
            //oldRegioForArea = reg->getValue("forArea_"+ft)/10000;
            //double debug = gfd("forArea",regId,ft,DIAM_ALL,thisYear-1);
            //double debug_diff = oldRegioForArea - debug;
            //cout << thisYear << ";" << regId << ";" << ft << ";" << oldRegioForArea << ";" << debug << ";" << debug_diff << endl;
            double harvestedArea = gfd("harvestedArea",regId,ft,DIAM_ALL); //20140206
            double regArea = gfd("regArea",regId,ft,DIAM_ALL); //20140206
      double newRegioForArea = oldRegioForArea + regArea - harvestedArea;
      sfd(newRegioForArea,"forArea",regId,ft,"",DATA_NOW, true);
      for(uint z=0;z<rpx.size();z++){
        double oldValue = rpx[z]->getDoubleValue("forArea_"+ft,true);
                double ratio = newRegioForArea/oldRegioForArea;
                double newValue = oldValue*ratio;
        rpx[z]->changeValue("forArea_"+ft, newValue);
      }

    }
  }
}

Referenced by runInitPeriod(), and runSimulationYear().

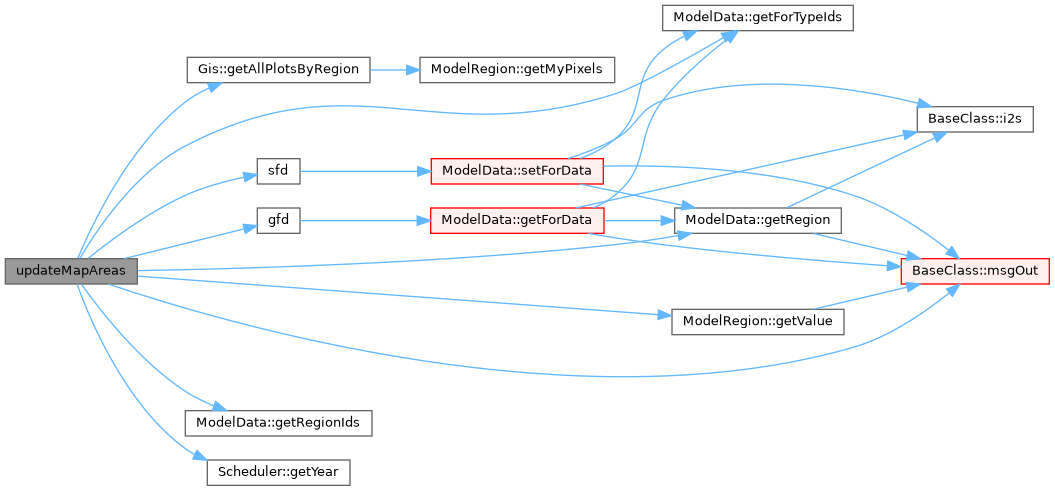

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

allProducts

vector<string> allProducts

private

Definition at line 83 of file ModelCore.h.

Referenced by cacheSettings(), initMarketModule(), and runMarketModule().

dClasses

vector<string> dClasses

private

Definition at line 84 of file ModelCore.h.

Referenced by cacheSettings(), computeCumulativeData(), computeInventary(), runBiologicalModule(), and runManagementModule().

expType

double expType

private

Definition at line 89 of file ModelCore.h.

Referenced by cacheSettings(), and computeCumulativeData().

firstYear

int firstYear

private

Definition at line 76 of file ModelCore.h.

Referenced by cacheSettings(), computeCumulativeData(), initMarketModule(), and updateMapAreas().

fTypes

vector<string> fTypes

private

Definition at line 86 of file ModelCore.h.

Referenced by cacheSettings(), computeCumulativeData(), computeInventary(), runBiologicalModule(), runManagementModule(), and updateMapAreas().

hV_byPrd

vector< vector < vector < vector <double> > > > hV_byPrd

private

Definition at line 91 of file ModelCore.h.

Referenced by runBiologicalModule(), and runManagementModule().

l2r

vector<vector <int> > l2r

private

Definition at line 87 of file ModelCore.h.

Referenced by cacheSettings(), and initMarketModule().

MD

ModelData* MD

private

Definition at line 75 of file ModelCore.h.

Referenced by cacheSettings(), computeCumulativeData(), and runManagementModule().

mr

double mr

private

Definition at line 90 of file ModelCore.h.

Referenced by cacheSettings(), and runManagementModule().

pDClasses

vector<string> pDClasses

private

Definition at line 85 of file ModelCore.h.

Referenced by cacheSettings().

priProducts

vector<string> priProducts

private

Definition at line 81 of file ModelCore.h.

Referenced by cacheSettings(), computeInventary(), initMarketModule(), runBiologicalModule(), runManagementModule(), and runMarketModule().

regIds2

vector<int> regIds2

private

Definition at line 80 of file ModelCore.h.

Referenced by cacheSettings(), computeCumulativeData(), computeInventary(), initMarketModule(), runBiologicalModule(), runManagementModule(), and runMarketModule().

regType

string regType

private

Definition at line 88 of file ModelCore.h.

Referenced by cacheSettings(), runBiologicalModule(), and runManagementModule().

rescaleFrequencies

bool rescaleFrequencies

private

Definition at line 93 of file ModelCore.h.

Referenced by cacheSettings(), and runManagementModule().

secondYear

int secondYear

private

Definition at line 77 of file ModelCore.h.

Referenced by cacheSettings(), initMarketModule(), and runBiologicalModule().

secProducts

vector<string> secProducts

private

Definition at line 82 of file ModelCore.h.

Referenced by cacheSettings(), initMarketModule(), and runMarketModule().

thirdYear

int thirdYear

private

Definition at line 78 of file ModelCore.h.

Referenced by cacheSettings().

WL2

int WL2

private

Definition at line 79 of file ModelCore.h.

Referenced by cacheSettings(), initMarketModule(), and runMarketModule().

---

The documentation for this class was generated from the following files:

• /exports/ffsm/src_latest/src/ModelCore.h
• /exports/ffsm/src_latest/src/ModelCore.cpp
