#include <ModelRegion.h>

Inheritance diagram for ModelRegion:

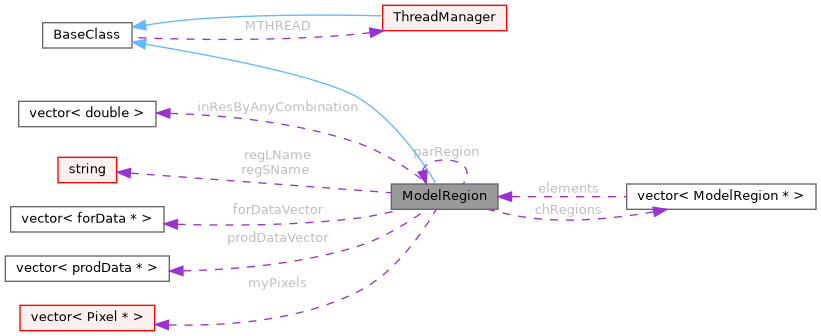

Collaboration diagram for ModelRegion:

[legend]

Public Member Functions
	ModelRegion (ThreadManager *MTHREAD_h, int regId_h, string regSName_h, string regLName_h, int regLevel_h, int parRegId_h, bool isResidual_h)
	Constructor.

	~ModelRegion ()

void	setRegId (int regId_h)

void	setRegSName (string regSName_h)

void	setRegLName (string regLName_h)

void	setRegLevel (int regLevel_h)

void	setParRegId (int parRegId_h)

void	setIsResidual (bool isResidual_h)

void	setParent (ModelRegion *parRegion_h)

void	setChildren (vector< ModelRegion * > children_h)

void	addForData (forData *data_h)
	Childrens are all the lvel-1 region that are parts of this region.

void	addProdData (prodData *data_h)

void	setMyPixels ()
	It sets a double link pixels <--> region.

void	swap (const int &swap_what)

int	getRegId () const

string	getRegSName () const

string	getRegLName () const

int	getRegLevel () const

int	getParRegId () const

bool	getIsResidual () const

ModelRegion *	getParent ()

vector< ModelRegion * >	getChildren (bool excludeResidual=true)
	Returns a pointer to the parent regions.

vector< ModelRegion * >	getSiblings (bool excludeResidual=true)
	Return a vector of pointers to the siblings regions.

double	getVolumes ()

vector< double >	getVolumes (int fType_h)

double	getValue (string layerName, int op=OP_SUM)
	return the values of its own pixels for the specified layer. Possible operations: OP_SUM or OP_AVG

vector< vector< double > >	getVolumes (int fType_h, string dClass_h)

double	getArea (const string &fType_h, const string &dClass_h)
	Get area by ft and dc (from pixel->area matrix)

double	getArea (const string &fType_h)
	Get area by ft (from pixel->area matrix)

double	getArea (const int &ft_pos, const int &dc_pos)
	Get area by ft and dc positions (from pixel->area matrix)

double	getArea (const int &ft_pos)
	Get area by ft position (from pixel->area matrix)

double	getArea ()
	Get whole forest area (from pixel->area matrix)

int	getNChildren (bool excludeResidual=true)

vector< Pixel * >	getMyPixels ()

Public Member Functions inherited from BaseClass
	BaseClass ()

	~BaseClass ()

void	msgOut (const int &msgCode_h, const string &msg_h, const bool &refreshGUI_h=true) const
	Overloaded function to print the output log.

void	msgOut (const int &msgCode_h, const int &msg_h, const bool &refreshGUI_h=true) const
	Overloaded function to print the output log.

void	msgOut (const int &msgCode_h, const double &msg_h, const bool &refreshGUI_h=true) const
	Overloaded function to print the output log.

int	s2i (const string &string_h) const
	string to integer conversion

double	s2d (const string &string_h) const
	string to double conversion

double	s2d (const string &string_h, const bool &replaceComma) const
	string to double conversion

bool	s2b (const string &string_h) const
	string to bool conversion

string	i2s (const int &int_h) const
	integer to string conversion

string	d2s (const double &double_h) const
	double to string conversion

string	b2s (const bool &bool_h) const
	bool to string conversion

vector< int >	s2i (const vector< string > &string_h) const
	string to integer conversion (vector)

vector< double >	s2d (const vector< string > &string_h, const bool &replaceComma=false) const
	string to double conversion (vector)

vector< bool >	s2b (const vector< string > &string_h) const
	string to bool conversion (vector)

vector< string >	i2s (const vector< int > &int_h) const
	integer to string conversion (vector)

vector< string >	d2s (const vector< double > &double_h) const
	double to string conversion (vector)

vector< string >	b2s (const vector< bool > &bool_h) const
	bool to string conversion (vector)

int	getType (const string &type_h) const
	Return a type according to enum TYPE_* from a string (eg: "string" -> TYPE_STRING (2))

void	refreshGUI () const
	Ping to periodically return the control to the GUI.

template<typename T >
string	toString (const T &x) const

template<typename T >
T	stringTo (const std::string &s) const

int	vSum (const vector< int > &vector_h) const

double	vSum (const vector< double > &vector_h) const

int	vSum (const vector< vector< int > > &vector_h) const

double	vSum (const vector< vector< double > > &vector_h) const

void	tokenize (const string &str, vector< string > &tokens, const string &delimiter=" ") const
	Tokenize a string using a delimiter (default is space)

void	untokenize (string &str, vector< string > &tokens, const string &delimiter=" ") const

template<typename K , typename V >
V	findMap (const map< K, V > &mymap, const K &key, const int &error_level=MSG_CRITICAL_ERROR, const V &notFoundValue=numeric_limits< V >::min()) const
	Lookup a map for a value. Return the value starting from the key.

template<typename K , typename V >
void	changeMapValue (map< K, V > &mymap, const K &key, const V &value, const int &error_level=MSG_CRITICAL_ERROR)
	Change the value stored in a map given the key and the new value.

template<typename K , typename V >
void	incrMapValue (map< K, V > &mymap, const K &key, const V &value, const int &error_level=MSG_CRITICAL_ERROR)
	Increments a value stored in a map of the specified value, given the key.

template<typename K , typename V >
void	incrOrAddMapValue (map< K, V > &mymap, const K &key, const V &value)
	Increments a value stored in a map of the specified value, given the key.

template<typename K , typename V >
void	resetMapValues (map< K, V > &mymap, const V &value)
	Reset all values stored in a map to the specified one.

template<typename K , typename V >
map< K, V >	vectorToMap (const vector< K > &keys, const V &value=0.0)
	Returns a map built using the given vector and the given (scalar) value as keys/values pairs.

template<typename T >
vector< T >	positionsToContent (const vector< T > &vector_h, const vector< int > &positions)
	Return a vector of content from a vector and a vector of positions (int)

template<typename V >
void	debugMap (const map< iisskey, V > &mymap)
	Debug a map.

template<typename K , typename V >
void	debugMap (const map< K, V > &mymap, const K &key)

template<typename K >
int	getMaxPos (const vector< K > &v)
	Returns the position of the maximum element in the vector (the last one in case of multiple equivalent maxima)

template<typename K >
int	getMinPos (const vector< K > &v)
	Returns the position of the minimum element in the vector (the first one in case of multiple equivalent minima)

template<typename K >
K	getMax (const vector< K > &v)
	Returns the value of the maximum element in the vector (the last one in case of multiple equivalent maxima)

template<typename K >
K	getMin (const vector< K > &v)
	Returns the value of the minimum element in the vector (the first one in case of multiple equivalent minima)

template<typename K >
double	getAvg (const vector< K > &v)
	Returns the average of the elements in the vector.

template<typename K >
double	getSd (const vector< K > &v, bool sample=true)

template<typename K >
int	getPos (const K &element, const vector< K > &v, const int &msgCode_h=MSG_CRITICAL_ERROR)

template<typename K >
bool	inVector (const K &element, const vector< K > &v)

double	normSample (const double &avg, const double &stdev, const double &minval=NULL, const double &maxval=NULL) const
	Sample from a normal distribution with bounds. Slower (double time, but still you see the diff only after milion of loops).

template<typename K >
K	normSample (normal_distribution< K > &d, std::mt19937 &gen, const K &minval=NULL, const K &maxval=NULL) const
	Sample from a normal distribution with bounds. Faster (half time) as the normal_distribution is made only once.

template<typename T >
std::string	toString (const T &x) const

Public Attributes
vector< double >	inResByAnyCombination
	Vector of inventory resource for each possible combination of primary products. This store both alive timber and death one.

Private Attributes
int	regId
	Regional unique ID.

string	regSName
	A short name of the region.

string	regLName
	Region long name;.

int	regLevel
	The level of the region. 1: country, 2: regions.

int	parRegId
	Id of the parent region;.

bool	isResidual
	A flag if this region should be explicitelly modelled or it is just a residual.

ModelRegion *	parRegion
	Pointer to the parent region.

vector< ModelRegion * >	chRegions
	Vector of level-1 children regions.

vector< forData * >	forDataVector
	Vector of pointers of forestry data (owned by ModelData)

vector< prodData * >	prodDataVector
	Vector of pointers of product data (owned by ModelData)

vector< Pixel * >	myPixels
	Vector of pixels for this region.

Additional Inherited Members
Protected Attributes inherited from BaseClass
ThreadManager *	MTHREAD
	Pointer to the Thread manager.

Detailed Description

Definition at line 45 of file ModelRegion.h.

Constructor & Destructor Documentation

◆ ModelRegion()

ModelRegion	(	ThreadManager *	MTHREAD_h,
		int	regId_h,
		string	regSName_h,
		string	regLName_h,
		int	regLevel_h,
		int	parRegId_h,
		bool	isResidual_h
	)

Constructor.

The constructor of REGION instances want:

Parameters

MTHREAD_h Pointer to the main thread manager

Definition at line 34 of file ModelRegion.cpp.

                                                                                                                                                      {
  MTHREAD=MTHREAD_h;
  regId = regId_h;
  regSName = regSName_h;
  regLName = regLName_h;
  regLevel = regLevel_h;
  parRegId = parRegId_h;
  isResidual =  isResidual_h;

  // Create an empty vector of inventory bounds for each possible primary products combination
  int nInBounds = pow(2,MTHREAD->MD->getStringVectorSetting("priProducts").size());
  //int nInBounds = MTHREAD->MD->getStringVectorSetting("priProducts").size(); // TODO todo !Important
  vector <double> inBounds(nInBounds,0.); // should have ceated a vector of size priProducts.size(), all filled with zeros
  inResByAnyCombination             = inBounds;
  //inResByAnyCombination_deathTimber = inBounds;
}

Here is the call graph for this function:

◆ ~ModelRegion()

~ModelRegion ( )

Definition at line 51 of file ModelRegion.cpp.

51 {

52}

Member Function Documentation

◆ addForData()

void addForData ( forData * data_h )

inline

Childrens are all the lvel-1 region that are parts of this region.

Definition at line 60 of file ModelRegion.h.

60{forDataVector.push_back(data_h);};

ModelRegion::forDataVector

vector< forData * > forDataVector

Vector of pointers of forestry data (owned by ModelData)

Definition ModelRegion.h:100

◆ addProdData()

void addProdData ( prodData * data_h )

inline

Definition at line 61 of file ModelRegion.h.

61{prodDataVector.push_back(data_h);};

ModelRegion::prodDataVector

vector< prodData * > prodDataVector

Vector of pointers of product data (owned by ModelData)

Definition ModelRegion.h:101

◆ getArea() [1/5]

double getArea ( )

Get whole forest area (from pixel->area matrix)

Definition at line 181 of file ModelRegion.cpp.

                    {
  vector<Pixel*> regPx = this->getMyPixels();
  double totalarea = 0.0;
  for(uint i=0;i<myPixels.size(); i++){
     totalarea += vSum(myPixels[i]->area);
  }
  return totalarea;
}

Referenced by getArea(), and getArea().

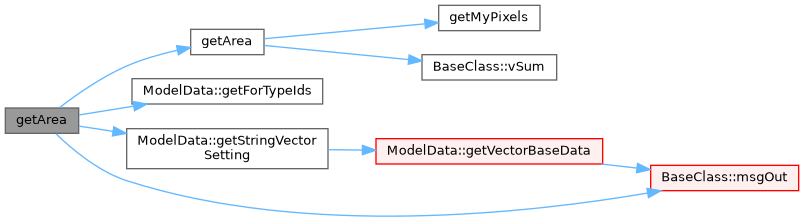

Here is the call graph for this function:

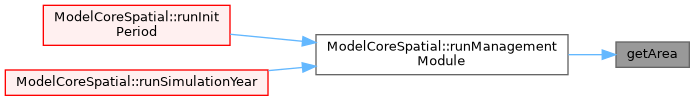

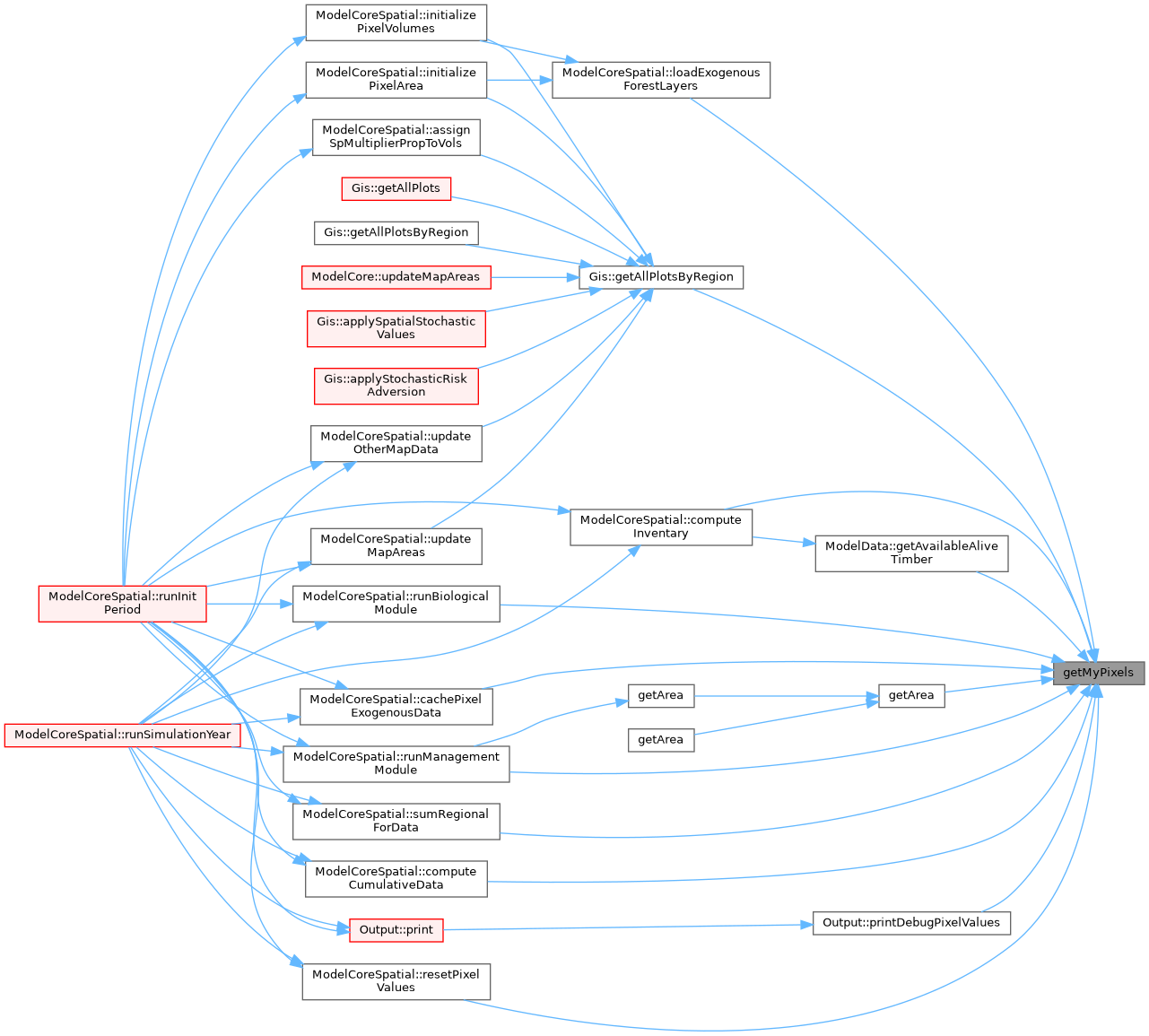

Here is the caller graph for this function:

◆ getArea() [2/5]

double getArea ( const int & ft_pos )

Get area by ft position (from pixel->area matrix)

Definition at line 172 of file ModelRegion.cpp.

                                     {
  double totalarea = 0.0;
  for(uint i=0;i<myPixels.size(); i++){
     totalarea += vSum(myPixels[i]->area.at(ft_pos));
  }
  return totalarea;
}

Here is the call graph for this function:

◆ getArea() [3/5]

double getArea	(	const int &	ft_pos,
		const int &	dc_pos
	)

Get area by ft and dc positions (from pixel->area matrix)

Definition at line 163 of file ModelRegion.cpp.

                                                        {
  double totalarea = 0.0;
  for(uint i=0;i<myPixels.size(); i++){
     totalarea += myPixels[i]->area.at(ft_pos).at(dc_pos);
  }
  return totalarea;
}

◆ getArea() [4/5]

double getArea ( const string & fType_h )

Get area by ft (from pixel->area matrix)

Definition at line 149 of file ModelRegion.cpp.

                                         {
  vector <string> fTypes= MTHREAD->MD->getForTypeIds();
  int ft_pos = -1000;
  for(uint j=0;j<fTypes.size();j++){
    if (fTypes[j] == fType_h){
      ft_pos = j;
      break;
    }
  }
  if(ft_pos<0) msgOut(MSG_CRITICAL_ERROR,"Forest type "+fType_h+" not found in getArea() function.");
  return getArea(ft_pos);
}

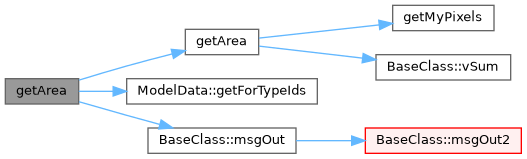

Here is the call graph for this function:

◆ getArea() [5/5]

double getArea	(	const string &	fType_h,
		const string &	dClass_h
	)

Get area by ft and dc (from pixel->area matrix)

Definition at line 125 of file ModelRegion.cpp.

                                                                 {
  vector <string> dClasses = MTHREAD->MD->getStringVectorSetting("dClasses");
  vector <string> fTypes= MTHREAD->MD->getForTypeIds();
  int ft_pos = -1000;
  int dc_pos = -1000;
  for(uint j=0;j<fTypes.size();j++){
    if (fTypes[j] == fType_h){
      ft_pos = j;
      break;
    }
  }
  for(uint u=0;u<dClasses.size();u++){
    if (dClasses[u] == dClass_h){
      dc_pos = u;
      break;
    }
  }
  if(ft_pos<0) msgOut(MSG_CRITICAL_ERROR,"Forest type "+fType_h+" not found in getArea() function.");
  if(dc_pos<0) msgOut(MSG_CRITICAL_ERROR,"Diameter class"+dClass_h+" not found in getArea() function.");

  return getArea(ft_pos, dc_pos);
}

Referenced by ModelCoreSpatial::runManagementModule().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getChildren()

vector< ModelRegion * > getChildren ( bool excludeResidual = true )

Returns a pointer to the parent regions.

Return a vector of pointers to the direct child regions

Definition at line 55 of file ModelRegion.cpp.

                                            {
  if(excludeResidual){
    vector<ModelRegion*> toReturn;
    for(uint i=0;i<chRegions.size();i++){
      if(!chRegions[i]->getIsResidual()){
        toReturn.push_back(chRegions[i]);
      }
    }
    return toReturn;
  }
  return chRegions;
}

Referenced by ModelData::applyOverrides(), Output::commonInit(), Opt::get_nlp_info(), ModelData::getForData(), getNChildren(), ModelData::getProdData(), ModelData::getRegionIds(), ModelData::setForData(), and ModelData::setProdData().

Here is the call graph for this function:

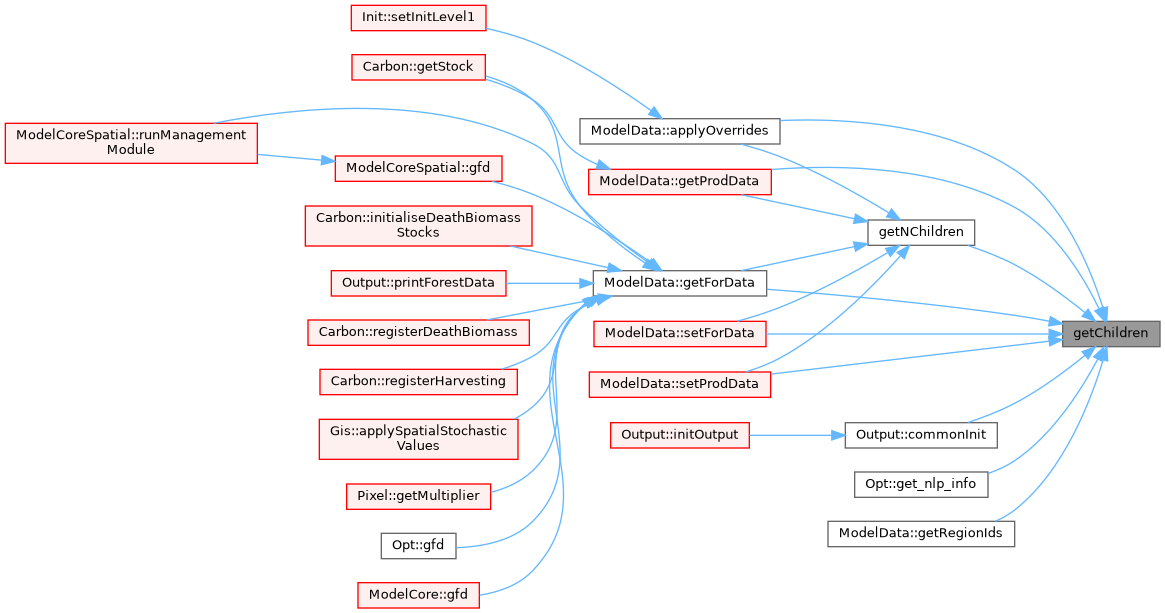

Here is the caller graph for this function:

◆ getIsResidual()

bool getIsResidual ( ) const

inline

Definition at line 71 of file ModelRegion.h.

71{return isResidual;};

Referenced by getChildren().

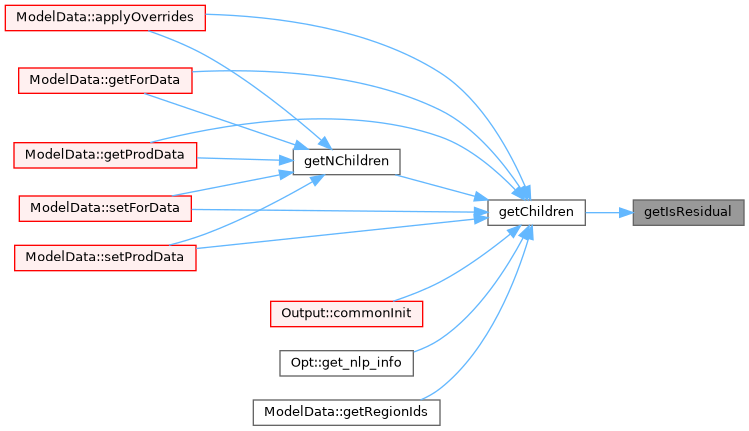

Here is the caller graph for this function:

◆ getMyPixels()

vector< Pixel * > getMyPixels ( )

inline

Definition at line 86 of file ModelRegion.h.

86{return myPixels;};

Referenced by ModelCoreSpatial::cachePixelExogenousData(), ModelCoreSpatial::computeCumulativeData(), ModelCoreSpatial::computeInventary(), Gis::getAllPlotsByRegion(), getArea(), ModelData::getAvailableAliveTimber(), ModelCoreSpatial::loadExogenousForestLayers(), Output::printDebugPixelValues(), ModelCoreSpatial::resetPixelValues(), ModelCoreSpatial::runBiologicalModule(), ModelCoreSpatial::runManagementModule(), and ModelCoreSpatial::sumRegionalForData().

Here is the caller graph for this function:

◆ getNChildren()

int getNChildren ( bool excludeResidual = true )

Definition at line 69 of file ModelRegion.cpp.

                                             {
  /*if(excludeResidual){
    int toReturn = 0; // Bug found 20180927
    for(uint i=0;i<chRegions.size();i++){
      if(!chRegions[i]->getIsResidual()){
        toReturn++;
      }
    }
    return toReturn;
  }
  return chRegions.size();
  */
  return getChildren(excludeResidual).size();
}

Referenced by ModelData::applyOverrides(), ModelData::getForData(), ModelData::getProdData(), ModelData::setForData(), and ModelData::setProdData().

Here is the call graph for this function:

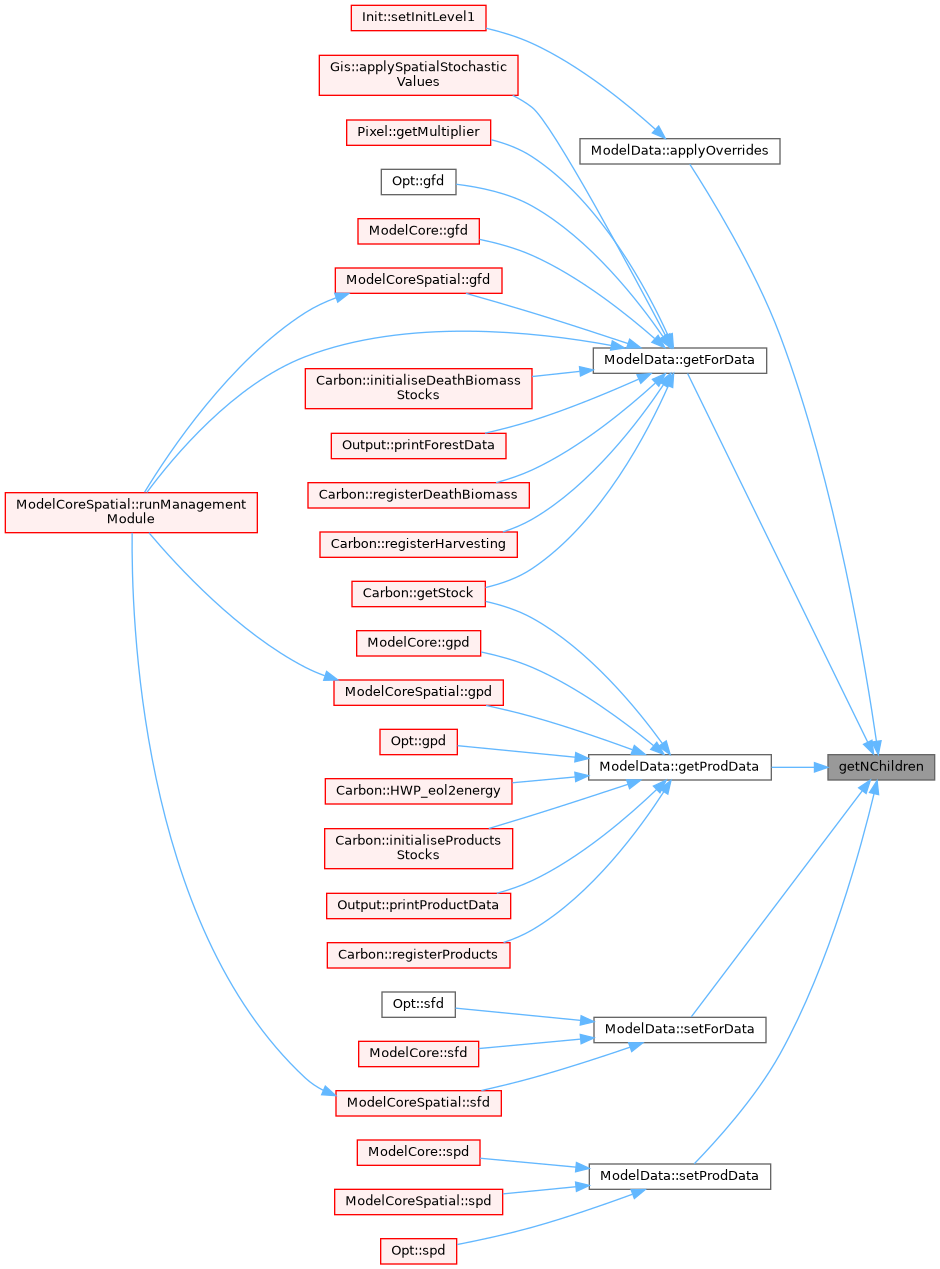

Here is the caller graph for this function:

◆ getParent()

ModelRegion * getParent ( )

inline

Definition at line 72 of file ModelRegion.h.

72{return parRegion;}; ///< Returns a pointer to the parent regions

ModelRegion::parRegion

ModelRegion * parRegion

Pointer to the parent region.

Definition ModelRegion.h:98

Referenced by Pixel::getMyRegion().

Here is the caller graph for this function:

◆ getParRegId()

int getParRegId ( ) const

inline

Definition at line 70 of file ModelRegion.h.

70{return parRegId;};

◆ getRegId()

int getRegId ( ) const

inline

Definition at line 66 of file ModelRegion.h.

66{return regId;};

Referenced by Pixel::getMultiplier(), and getSiblings().

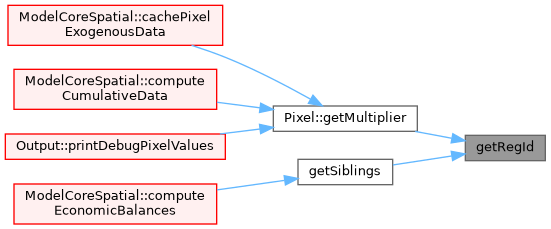

Here is the caller graph for this function:

◆ getRegLevel()

int getRegLevel ( ) const

inline

Definition at line 69 of file ModelRegion.h.

69{return regLevel;};

◆ getRegLName()

string getRegLName ( ) const

inline

Definition at line 68 of file ModelRegion.h.

68{return regLName;};

◆ getRegSName()

string getRegSName ( ) const

inline

Definition at line 67 of file ModelRegion.h.

67{return regSName;};

Referenced by ModelData::regId2RegSName(), ModelData::regSName2RegId(), and ModelCoreSpatial::runBiologicalModule().

Here is the caller graph for this function:

◆ getSiblings()

vector< ModelRegion * > getSiblings ( bool excludeResidual = true )

Return a vector of pointers to the siblings regions.

Definition at line 85 of file ModelRegion.cpp.

                                            {
  vector<ModelRegion*> toReturn;
  vector<ModelRegion*> allRegions = MTHREAD->MD->getAllRegions(excludeResidual);
  for (uint i=0;i<allRegions.size();i++){
    if (allRegions[i]->parRegId == parRegId && allRegions[i]->getRegId() != regId){
      toReturn.push_back(allRegions[i]);
    }
  }
  return toReturn;
}

Referenced by ModelCoreSpatial::computeEconomicBalances().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getValue()

double getValue	(	string	layerName,
		int	op = `OP_SUM`
	)

return the values of its own pixels for the specified layer. Possible operations: OP_SUM or OP_AVG

Definition at line 191 of file ModelRegion.cpp.

                                             {
  int nPx = myPixels.size();
  double sumvalue=0;
  for(uint i=0;i<nPx; i++){
    sumvalue += myPixels[i]->getDoubleValue(layerName,true);
  }
  if(op==OP_SUM){
    return sumvalue;
  } else if (op == OP_AVG) {
    return sumvalue/nPx;
  } else {
    string thisf = __PRETTY_FUNCTION__;
    msgOut(MSG_CRITICAL_ERROR, "in "+thisf+", operation not supported");
  }
  return 0.;
}

Referenced by ModelCoreSpatial::initializePixelArea(), ModelCoreSpatial::initializePixelVolumes(), ModelCoreSpatial::runBiologicalModule(), and ModelCore::updateMapAreas().

Here is the call graph for this function:

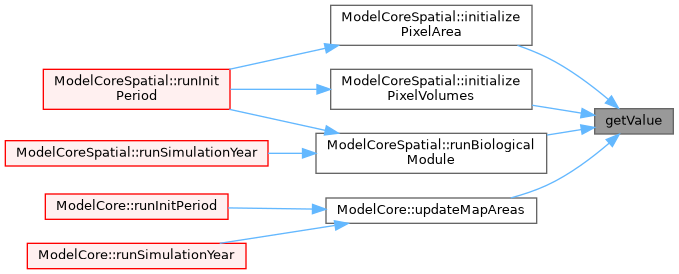

Here is the caller graph for this function:

◆ getVolumes() [1/3]

double getVolumes ( )

Todo:: Implement me (but really needed?)

Definition at line 104 of file ModelRegion.cpp.

                       {
  /// \todo Implement me (but really needed?)
  return 0;
}

◆ getVolumes() [2/3]

vector< double > getVolumes ( int fType_h )

Todo:: Implement me (but really needed?)

Definition at line 110 of file ModelRegion.cpp.

                                  {
  /// \todo Implement me (but really needed?)
  vector<double> toReturn;
  return toReturn;
}

◆ getVolumes() [3/3]

vector< vector< double > > getVolumes	(	int	fType_h,
		string	dClass_h
	)

Todo:: Implement me (but really needed?)

Definition at line 117 of file ModelRegion.cpp.

                                                   {
  /// \todo Implement me (but really needed?)
  vector < vector <double> > toReturn;
  return toReturn;
}

◆ setChildren()

void setChildren ( vector< ModelRegion * > children_h )

inline

Definition at line 59 of file ModelRegion.h.

59{chRegions = children_h;}; ///< Childrens are all the lvel-1 region that are parts of this region.

◆ setIsResidual()

void setIsResidual ( bool isResidual_h )

inline

Definition at line 57 of file ModelRegion.h.

57{isResidual = isResidual_h;};

◆ setMyPixels()

void setMyPixels ( )

It sets a double link pixels <--> region.

Definition at line 215 of file ModelRegion.cpp.

                        {
  int xyNPixels = MTHREAD->GIS->getXyNPixels();
  for(uint i=0;i<xyNPixels;i++){
    Pixel* px = MTHREAD->GIS->getPixel(i);
    if(px->getDoubleValue("regLev_1")==regId || px->getDoubleValue("regLev_2")==regId){
      myPixels.push_back(px);
      if(regLevel == 2){
        px->setMyRegion(this);
      }
    }
  }
}

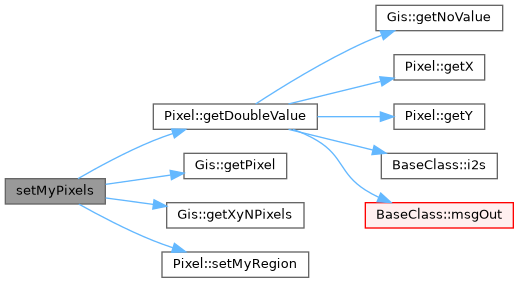

Here is the call graph for this function:

◆ setParent()

void setParent ( ModelRegion * parRegion_h )

inline

Definition at line 58 of file ModelRegion.h.

58{parRegion = parRegion_h;};

◆ setParRegId()

void setParRegId ( int parRegId_h )

inline

Definition at line 56 of file ModelRegion.h.

56{parRegId = parRegId_h;};

◆ setRegId()

void setRegId ( int regId_h )

inline

Definition at line 52 of file ModelRegion.h.

52{regId = regId_h;};

◆ setRegLevel()

void setRegLevel ( int regLevel_h )

inline

Definition at line 55 of file ModelRegion.h.

55{regLevel = regLevel_h;};

◆ setRegLName()

void setRegLName ( string regLName_h )

inline

Definition at line 54 of file ModelRegion.h.

54{regLName = regLName_h;};

◆ setRegSName()

void setRegSName ( string regSName_h )

inline

Definition at line 53 of file ModelRegion.h.

53{regSName = regSName_h;};

◆ swap()

void swap ( const int & swap_what )

Definition at line 229 of file ModelRegion.cpp.

                                     {

  for(uint i=0;i<myPixels.size();i++) {
    myPixels[i]->swap(swap_what);
  }

}

Member Data Documentation

◆ chRegions

vector<ModelRegion*> chRegions

private

Vector of level-1 children regions.

Definition at line 99 of file ModelRegion.h.

Referenced by getChildren(), and setChildren().

◆ forDataVector

vector<forData*> forDataVector

private

Vector of pointers of forestry data (owned by ModelData)

Definition at line 100 of file ModelRegion.h.

Referenced by addForData().

◆ inResByAnyCombination

vector<double> inResByAnyCombination

Vector of inventory resource for each possible combination of primary products. This store both alive timber and death one.

Definition at line 88 of file ModelRegion.h.

Referenced by ModelCoreSpatial::computeInventary(), Opt::copyInventoryResourses(), ModelRegion(), and ModelCoreSpatial::runMarketModule().

◆ isResidual

bool isResidual

private

A flag if this region should be explicitelly modelled or it is just a residual.

Definition at line 97 of file ModelRegion.h.

Referenced by getIsResidual(), ModelRegion(), and setIsResidual().

◆ myPixels

vector<Pixel*> myPixels

private

Vector of pixels for this region.

Definition at line 102 of file ModelRegion.h.

Referenced by getArea(), getArea(), getArea(), getMyPixels(), getValue(), setMyPixels(), and swap().

◆ parRegId

int parRegId

private

Id of the parent region;.

Definition at line 96 of file ModelRegion.h.

Referenced by getParRegId(), getSiblings(), ModelRegion(), and setParRegId().

◆ parRegion

ModelRegion* parRegion

private

Pointer to the parent region.

Definition at line 98 of file ModelRegion.h.

Referenced by getParent(), and setParent().

◆ prodDataVector

vector<prodData*> prodDataVector

private

Vector of pointers of product data (owned by ModelData)

Definition at line 101 of file ModelRegion.h.

Referenced by addProdData().

◆ regId

int regId

private

Regional unique ID.

Definition at line 92 of file ModelRegion.h.

Referenced by getRegId(), getSiblings(), ModelRegion(), setMyPixels(), and setRegId().

◆ regLevel

int regLevel

private

The level of the region. 1: country, 2: regions.

Definition at line 95 of file ModelRegion.h.

Referenced by getRegLevel(), ModelRegion(), setMyPixels(), and setRegLevel().

◆ regLName

string regLName

private

Region long name;.

Definition at line 94 of file ModelRegion.h.

Referenced by getRegLName(), ModelRegion(), and setRegLName().

◆ regSName

string regSName

private

A short name of the region.

Definition at line 93 of file ModelRegion.h.

Referenced by getRegSName(), ModelRegion(), and setRegSName().

The documentation for this class was generated from the following files:

/exports/ffsm/src_latest/src/ModelRegion.h
/exports/ffsm/src_latest/src/ModelRegion.cpp

Public Member Functions

Public Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ModelRegion()

◆ ~ModelRegion()

Member Function Documentation

◆ addForData()

◆ addProdData()

◆ getArea() [1/5]

◆ getArea() [2/5]

◆ getArea() [3/5]

◆ getArea() [4/5]

◆ getArea() [5/5]

◆ getChildren()

◆ getIsResidual()

◆ getMyPixels()

◆ getNChildren()

◆ getParent()

◆ getParRegId()

◆ getRegId()

◆ getRegLevel()

◆ getRegLName()

◆ getRegSName()

◆ getSiblings()

◆ getValue()

◆ getVolumes() [1/3]

◆ getVolumes() [2/3]

◆ getVolumes() [3/3]

◆ setChildren()

◆ setIsResidual()

◆ setMyPixels()

◆ setParent()

◆ setParRegId()

◆ setRegId()

◆ setRegLevel()

◆ setRegLName()

◆ setRegSName()

◆ swap()

Member Data Documentation

◆ chRegions

◆ forDataVector

◆ inResByAnyCombination

◆ isResidual

◆ myPixels

◆ parRegId

◆ parRegion

◆ prodDataVector

◆ regId

◆ regLevel

◆ regLName

◆ regSName
